Targets

A pipeline toolkit for R

December 2024

François Guilhaumon

Research scientist
@IRD

What is targets?

The Sisyphean workflow:

• Launch the code.


• Wait while it runs


• Discover an issue


• Restart from scratch

Targets

Targets is an extension developed by Will Landau that allows you to organize a project in the form of a processing pipeline, made up of different stages, and automatically managing the dependencies between them.

This organization has several advantages:

• it allows all pipeline stages to be described in a dedicated file, and forces the various stages to be separated into separate functions, making the project easier to read and maintain

• it facilitates reproducibility of processing, as it guarantees that all steps have been carried out in the right order and in a new environment

• it optimizes calculation times, because in the event of modification, only those steps that require it are restarted

How does it work?

Use functions

Transform blocks of code into functions by wrapping them into <- function() { my_code } and setting appropriate parameters.

mydata     <- read.csv("mydata.csv")

data2      <- clean(mydata)
data3      <- transform(data2)
data4      <- erase_na(data3)
data_clean <- transform(data_4)

mydata  <- read.csv("mydata.csv")

wrangle <- function(data){
  data2      <- clean(data)
  data3      <- transform(data2)
  data4      <- erase_na(data3)
  data_clean <- transform(data_4)
  return(data_clean)
}

data_clean <- wrangle(mydata)

Targets

In targets, a data analysis pipeline is a collection of target objects that express the individual steps of the workflow

• a target is a step of your pipeline (can also be an input file or a Quarto report)

• each target is defined using the function tar_target(), providing the name of the target as first argument and the function to create it as a second argument, there is a third optional argument to specify the ‘type’ of the target

• dependencies between targets are exposed because upstream targets are arguments of the functions used to build downstream targets

• this allow to visualize the pipeline as a dependency graph

Creating the pipeline

The pipeline is written in an R file, by default Targets looks for a _targets.R file located at the root of your project.

But this can be changed and the pipeline can be defined in an R file of your choice, you’ll have to set it up using the following (e.g. in your make.R file):

# ---- project execution
targets::tar_config_set(
  store  = "outputs/pipeline/",
  script = "analyses/pipeline.R"
)

Note that we also specified a custom location to store the targets.

library(targets)

list(
  # Make the workflow depends on the raw data file
  tar_target(name = raw_data_file, command = here::here("data", "airquality.csv"),
             format = "file"),

  # Read the data and return a data.frame
  tar_target(name = raw_data, command = read.csv(raw_data_file)),

  # Transform the data
  tar_target(data, raw_data %>% filter(!is.na(Ozone))),

  # Explore the data (custom function)
  tar_target(hist, hist(data$Ozone)),

  # Model the data
  tar_target(fit, lm(Ozone ~ Wind + Temp, data))
)

Creating the pipeline

library(targets)

list(
  # Make the workflow depends on the raw data file
  tar_target(name = raw_data_file, command = here::here("data", "airquality.csv"),
             format = "file"),

  # Read the data and return a data.frame
  tar_target(name = raw_data, command = read.csv(raw_data_file)),

  # Transform the data
  tar_target(data, raw_data %>% filter(!is.na(Ozone))),

  # Explore the data (custom function)
  tar_target(hist, hist(data$Ozone)),

  # Model the data
  tar_target(fit, lm(Ozone ~ Wind + Temp, data))
)

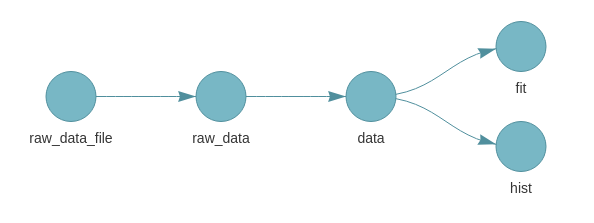

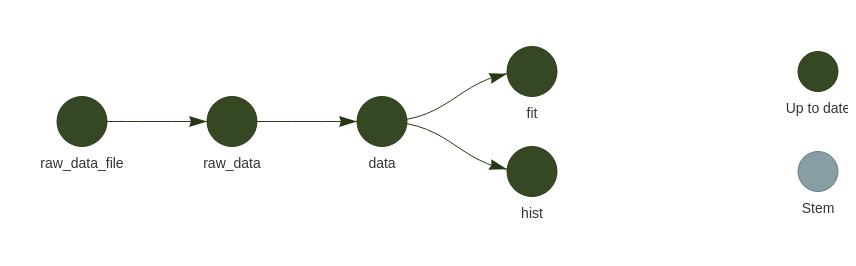

then visualise it:

targets::tar_visnetwork()

Creating the pipeline

All target script files have these requirements:

1. Load the targets package itself.

2. Load your custom functions and global objects into the R session: targets::tar_source().

3. Define individual targets with the tar_target() function. Each target is an intermediate step of the workflow. At minimum, a target must have a name and an R expression but it’s better if it uses a function that you defined in R/.

4. Every target script must end with a list of your tar_target() objects.

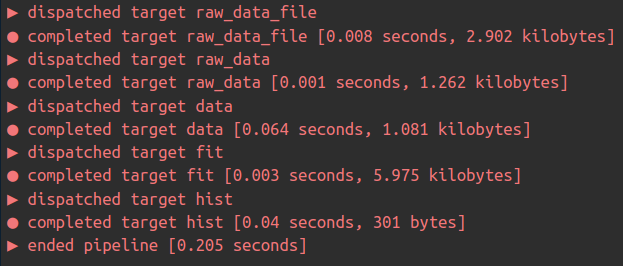

Running the pipeline

Once the pipeline is ready and inspected via targets::tar_visnetwork(), you can run it with:

targets::tar_make()

Running the pipeline

And inspect it again:

targets::tar_visnetwork()

Retrieving the results (the targets)

Targets objects are stored in the Targets store but you d’ont need to think about it when retrieving your results.

Just load or read targets with their names:

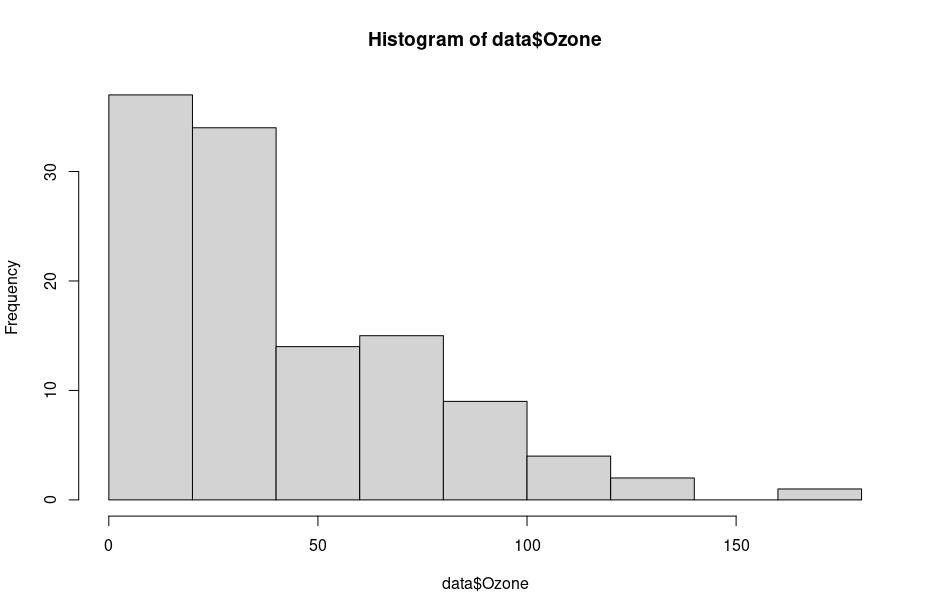

• Loading a target in the current workspace:

targets::tar_load("hist")

plot(hist)

Retrieving the results (the targets)

Targets objects are stored in the Targets store but you d’ont need to think about it when retrieving your results.

Just load or read targets with their names:

• Reading a target value and assign it to a new object:

histo <- targets::tar_read("hist")

plot(histo)

Targets loves changes

Changing the pipeline

Let’s modidify the target “hist” to use ggplot2 instead of R base graphics.

We will create a function that generate a ggplot2 histogram object and write it’s definition in R/functions.R:

R/functions.R

make_hist <- function(dat) {

  #dat = targets::tar_read("data")

  ggplot2::ggplot(data = dat, mapping = ggplot2::aes(x = Ozone)) +
    ggplot2::geom_histogram()

}

And modify the pipeline to use it:

library(targets)

tar_source() #load functions in R/

list(
  # Make the workflow depends on the raw data file
  tar_target(name = raw_data_file, command = here::here("data", "airquality.csv"),
             format = "file"),

  # Read the data and return a data.frame
  tar_target(name = raw_data, command = read.csv(raw_data_file)),

  # Transform the data
  tar_target(data, raw_data |> dplyr::filter(!is.na(Ozone))),

  # Explore the data (custom function)
  tar_target(hist, make_hist(data)),

  # Model the data
  tar_target(fit, lm(Ozone ~ Wind + Temp, data))
)

Changing the pipeline

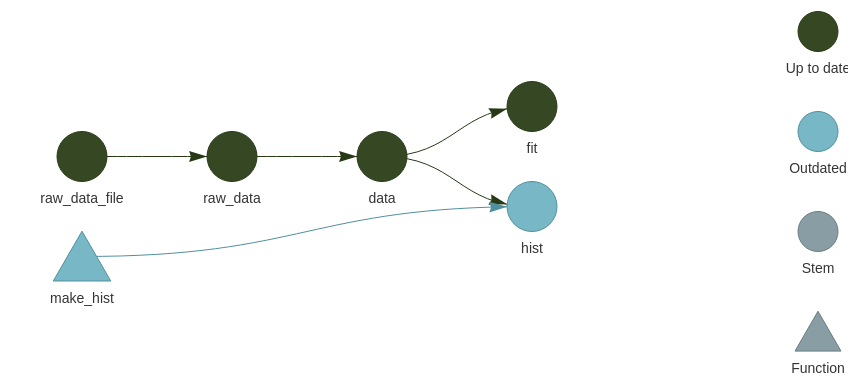

And inspect it again:

targets::tar_visnetwork()

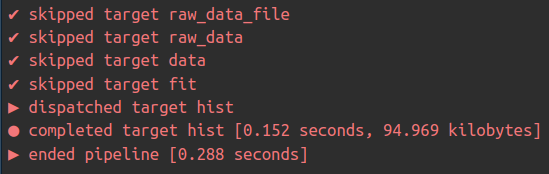

Changing the pipeline

And run it again:

targets::tar_make()

Targets workflow

Workflow

1. Write an R function

2. Add a target to the pipeline

3. Visualize the pipeline

4. Make the pipeline

5. Check the results

6. Write a function

Targets workflow

Workflow

1. Write an R function

2. Add a target to the pipeline

3. Visualize the pipeline

4. Make the pipeline

5. Check the results

6. Write a function

Targets workflow

Workflow

1. Write an R function

2. Add a target to the pipeline

3. Visualize the pipeline

4. Make the pipeline

5. Check the results

6. Write a function

Targets workflow

Workflow

1. Write an R function

2. Add a target to the pipeline

3. Visualize the pipeline

4. Make the pipeline

5. Check the results

6. Write a function

Input / Output Files

External input files

To reproducibly track an external input file, you need to define a new target that has:

1. A command that returns the file path as a character vector, and

2. specify format = "file" in tar_target().

When the target runs in the pipeline, the returned character vector gets recorded, and Targets watches the data file and invalidates the target when that file changes.

To track multiple files this way, simply define a multi-element character vector where each element is a path.

Each element can also be a directory, but this directory must not be empty at the time the target runs.

External input files

library(targets)

path_to_data <- function() {
  "data/raw_data.csv"
}

list(
  tar_target(raw_data_file, path_to_data(), format = "file"),
  tar_target(raw_data, read.csv(raw_data_file))
)

Several independant input files

A target with format = "file" treats the entire set of files as an irreducible bundle.

That means in order to “branch” over files, each file should be associated with its own target.

This is not optimal at all. Using the argument pattern solve this by providing a way to dynamically create targets for each input file.

Here is a pipeline that begins with data files and loads each into a different dynamic branch.

library(targets)

list(
  tar_target(paths, c("data_file_1.csv", "data_file_2.csv")),
  tar_target(files, paths, format = "file", pattern = map(paths)),
  tar_target(data, read.csv(files), pattern = map(files))
)

The tar_files() function from the tarchetypes package is shorthand for the first two targets above.

library(targets)

list(
  tarchetypes::tar_files(files, c("data_file_1.csv", "data_file_2.csv")),
  tar_target(data, read.csv(files), pattern = map(files))
)

External output files

Output files have the same mechanics as input files. The target uses format = "file", and the return value is a vector of paths to generated files.

The only difference here is that the target’s R command writes to storage before it returns a value.

For example, here is an output file target that saves a visualization.

tar_target(plot_file, save_plot_and_return_path(), format = "file")

Here, our custom save_plot_and_return_path() function does exactly what the name describes.

save_plot_and_return_path <- function() {
  plot <- ggplot(mtcars) +
    geom_point(aes(x = wt, y = mpg))
  ggsave(here::here("outputs", "plot_file.png"), plot,
         width = 7, height = 7)
  return(file.path("outputs", "plot_file.png"))
}

Literate programming

Literate programming

If you render a Quarto report as part of a target, the report should be lightweight: mostly prose, minimal code, fast execution, and no output other than the rendered HTML/PDF document.

Important

In other words, Quarto reports are just targets that document prior results.

The bulk of the computation should have already happened upstream, and the most of the code chunks in the report itself should be terse calls to tar_read() and tar_load().

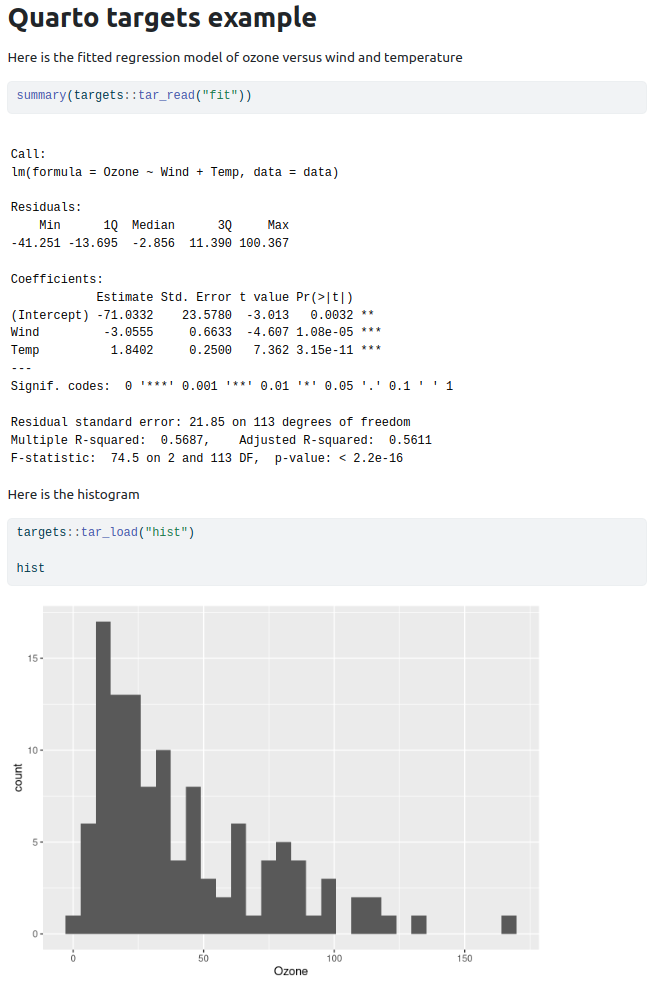

Literate programming

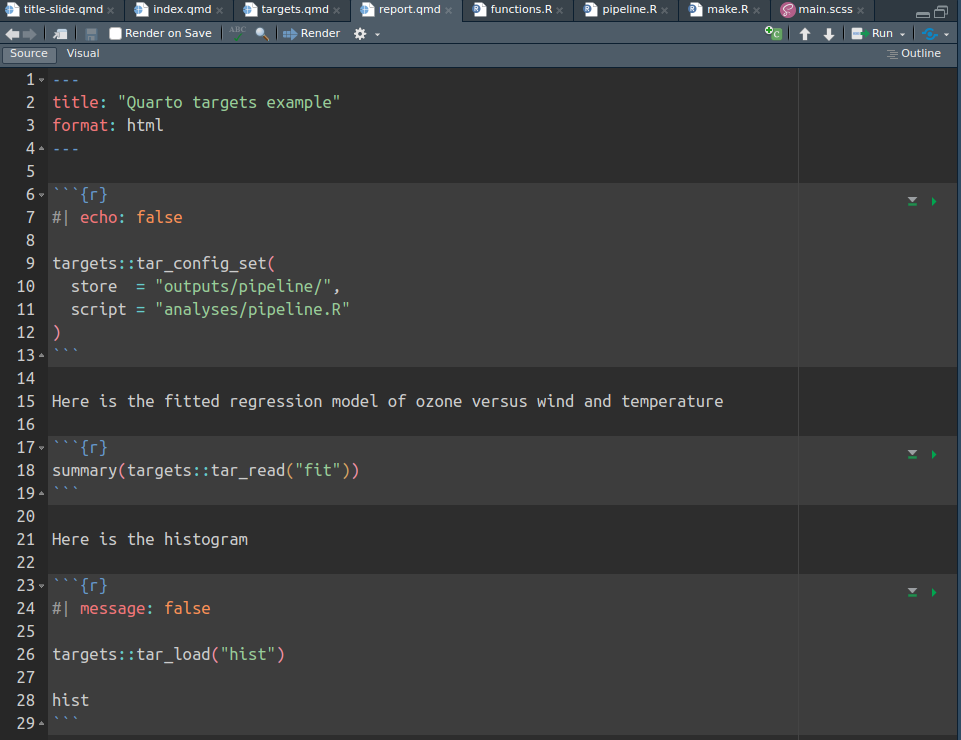

The report depends on targets fit and hist.

The use of tar_read() and tar_load() allows us to run the report outside the pipeline.

As long as the Targets store folder has data on the required targets from a previous tar_make(), you can open the RStudio IDE, edit the report, and click the Render button like you would for any other Quarto report.

Literate programming

The target definition function to render Quarto documents is part of the tarchetypes R package and looks like this.

tarchetypes::tar_quarto(report, "report.qmd") # Just defines a target object.

Because symbols fit and hist appear in the report via tar_load() and tar_read(), targets knows that report depends on fit and hist.

Literate programming

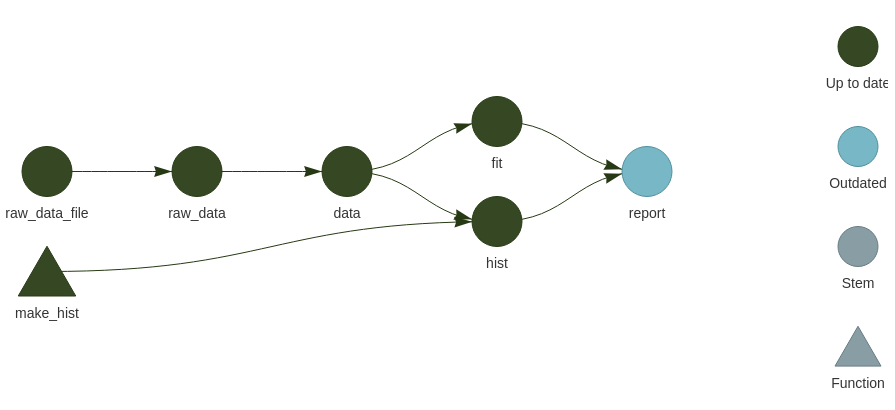

When we put the report target in the pipeline, these dependency relationships show up in the graph.

library(targets)

tar_source() #load functions in R/

list(
  # Make the workflow depends on the raw data file
  tar_target(name = raw_data_file, command = here::here("data", "airquality.csv"),
             format = "file"),

  # Read the data and return a data.frame
  tar_target(name = raw_data, command = read.csv(raw_data_file)),

  # Transform the data
  tar_target(data, raw_data |> dplyr::filter(!is.na(Ozone))),

  # Explore the data (custom function)
  tar_target(hist, make_hist(data)),

  # Model the data
  tar_target(fit, lm(Ozone ~ Wind + Temp, data)),

  tarchetypes::tar_quarto(report, "report.qmd")
)

Literate programming

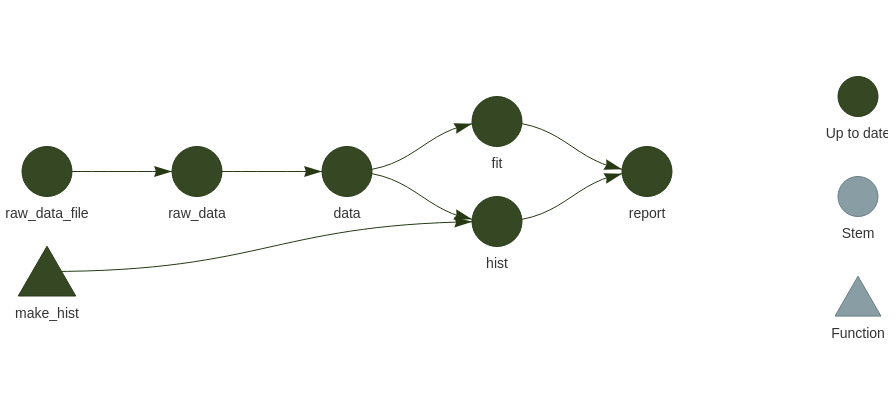

When we put the report target in the pipeline, these dependency relationships show up in the graph.

As always, tar_make() will run the pipeline and compile the report.

Recap

Recap: Why use targets?

• Optimize your workflow

• Reproducible for others and your future self

• 100% sure to be reproducible

• You can count on targets’s brain and work in a clean environment

• The package is well maintained and documented with a great manual
