## What's an R Package?

&nbsp;
In , the fundamental unit of shareable code is
the package.
A package bundles together `code`, `data`, `documentation`, and `tests`,
and is easy to share with others.

.right[&mdash;&nbsp;&nbsp;**_Hadley Wickham_**]

An package:

- is a collection of `well-documented functions`
- makes your work more `reproducible`
- makes your code `useful` for you and for others

As of today (2024-12-05):
- **21734** packages are available on the [`CRAN`](https://cran.r-project.org)
- **2289** packages on `Bioconductor`

---

## Must-read resources

.center[
[![:scale 34%](img/r-ext.png)](https://cran.r-project.org/doc/manuals/r-release/R-exts.html)
&nbsp;
[![:scale 36%](img/r-pkg.jpg)](https://r-pkgs.org/)
]

---

## Recommended environment

.center[
![:scale 40%](img/rstudio.png)
]

.center[
![:scale 13.0%](img/hex-devtools.png)
![:scale 13.0%](img/hex-usethis.png)
![:scale 13.0%](img/hex-roxygen2.png)
![:scale 13.0%](img/hex-rmarkdown.png)
![:scale 13.0%](img/hex-testthat.png)
]
.center[
![:scale 28.0%](img/up-to-date.png)
]

---

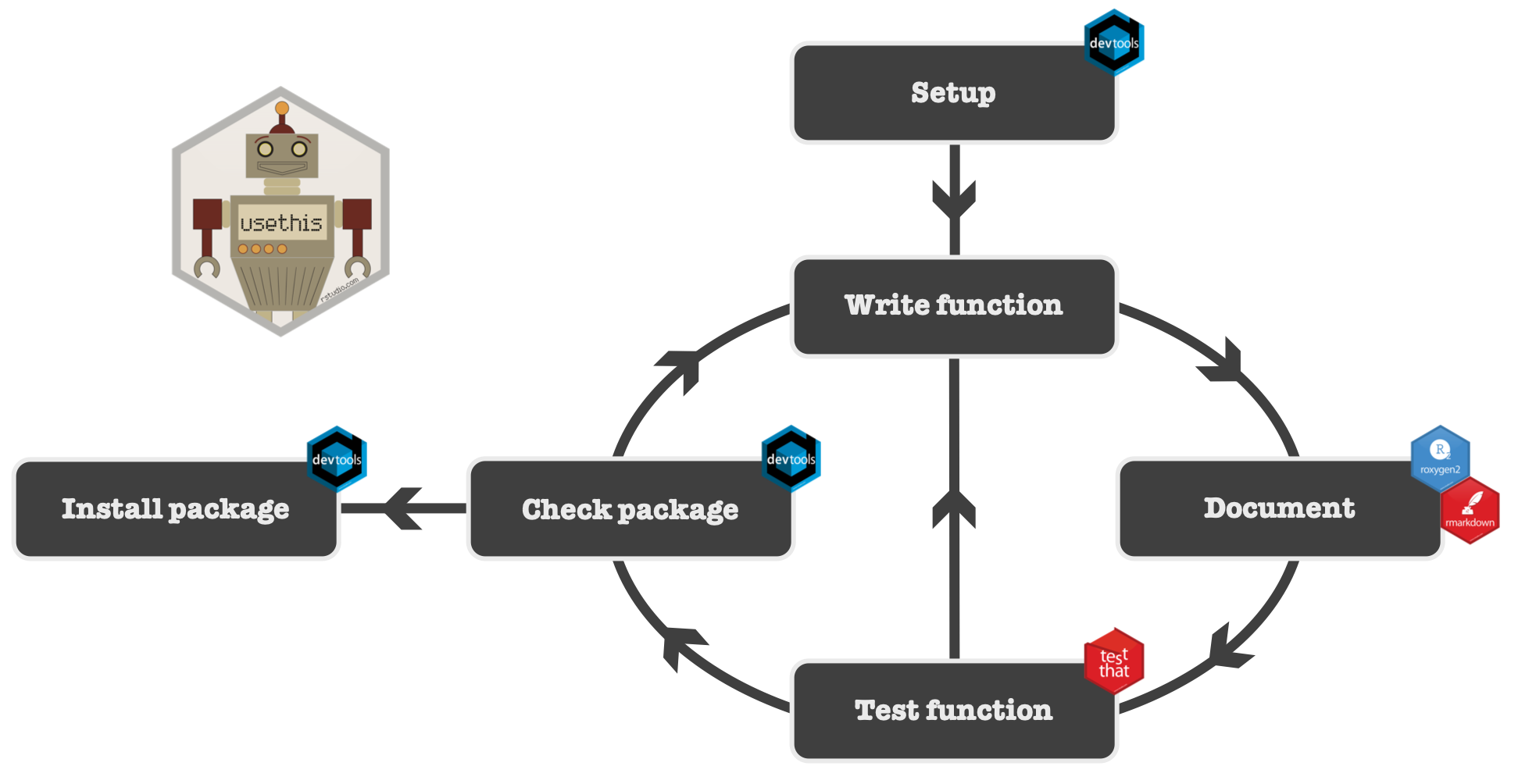

## Development workflow

![:scale 100.0%](img/pkg-steps.png)

---

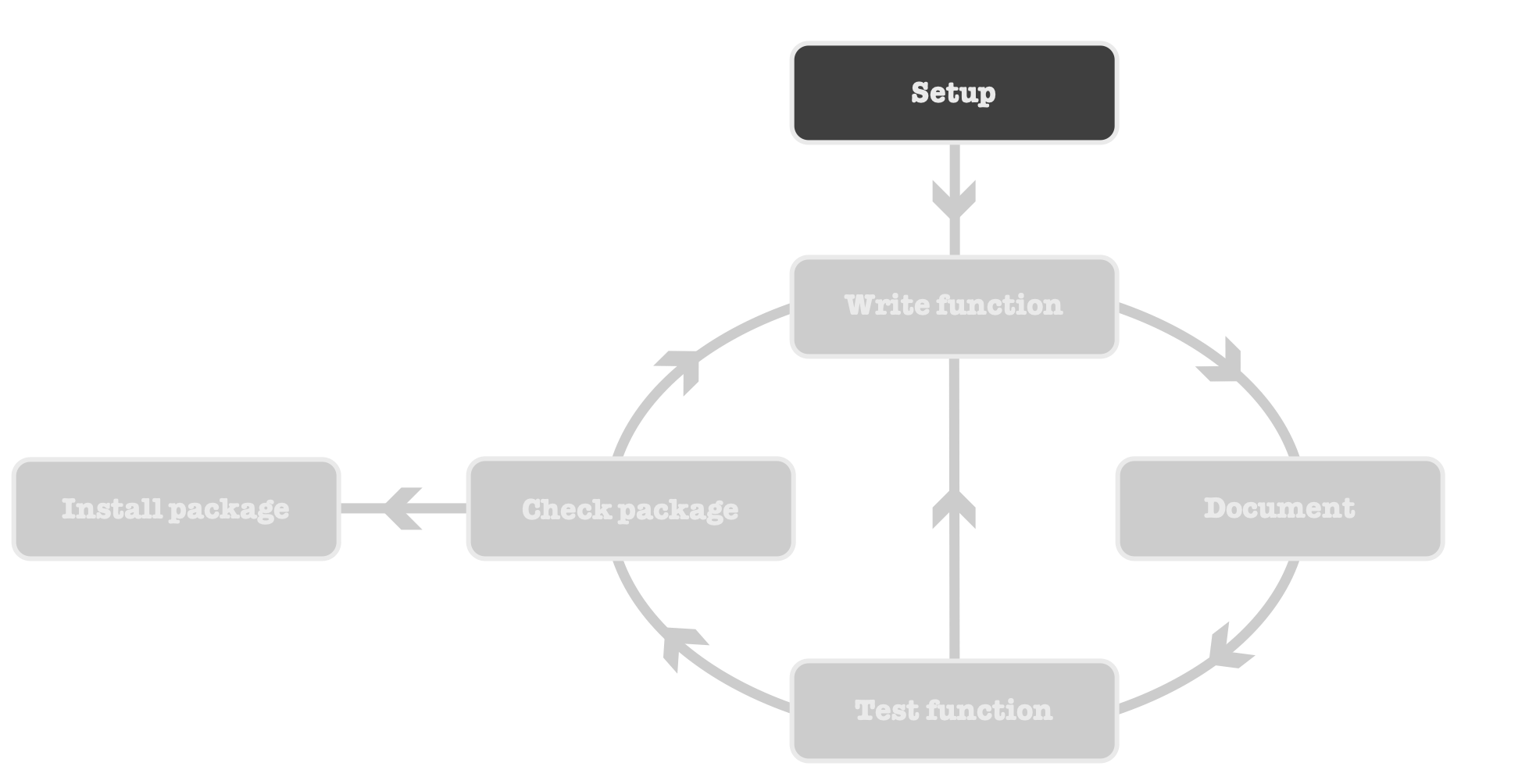

## Creating the structure

![:scale 100.0%](img/pkg-step-1.png)

---

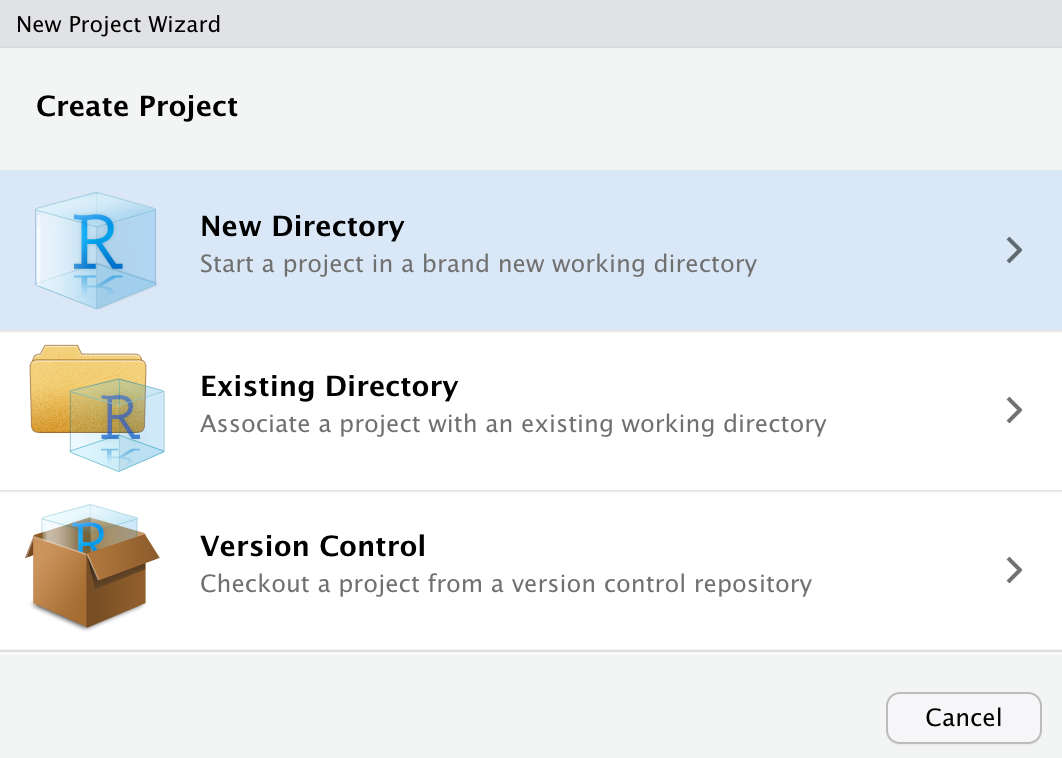

## Creating the structure

![:scale 10%](img/rstudio.png)

.center[
![:scale 32%](img/new-1.png)&nbsp;
![:scale 32%](img/new-2.png)&nbsp;
![:scale 32%](img/new-3.png)
]

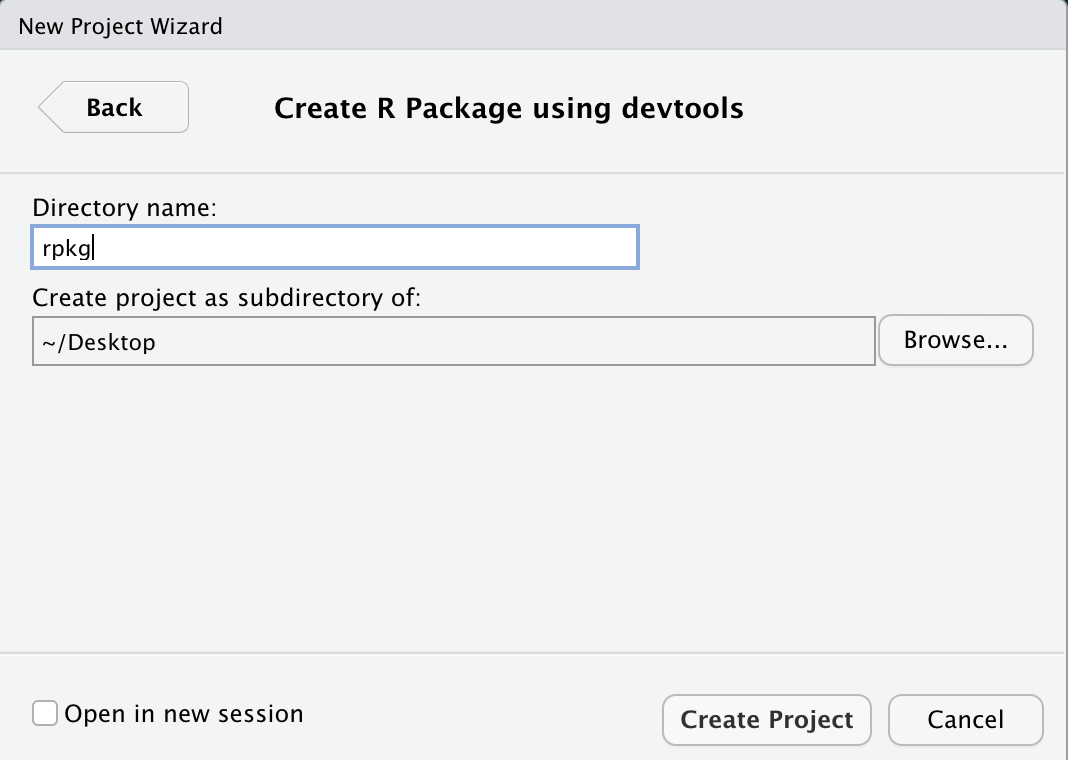

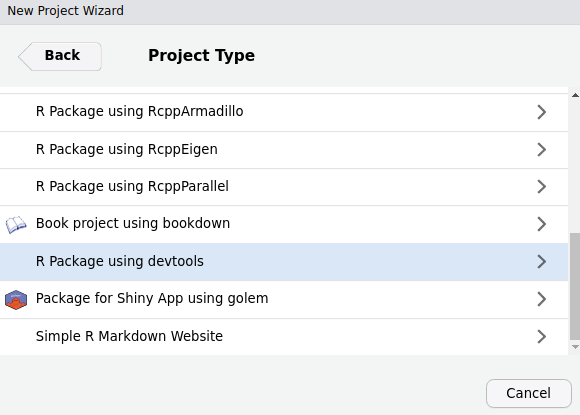

&nbsp;Make sure to select &nbsp;`Create R Package using devtools`

&nbsp;A **package name**
can only contain `letters`, `numbers`, and the `.`

&nbsp;Check that the chosen name is not already in use with `available::available("nomdupackage")`

``` r
## Alternatively ----
usethis::create_package("/absolute/path/to/the/package/name")
```

---

## Package structure

```
.
├── (.git)              # Git files system
├── (.gitignore)        # Untracked files by git
│
├── (mypkg.Rproj)       # RStudio files
│
├── .Rbuildignore       # List of non-standard package files
│
├── R/                  # Folder to store (only) R functions
│   ├── myfun-1.R       # A first R function file
│   └── myfun-2.R       # A second R function file
│
├── man/                # Folder to store R functions documentation (automatically edited)
│   ├── my_fun_1.Rd
│   └── my_fun_2.Rd
│
├── DESCRIPTION         # Package metadata
│
└── NAMESPACE           # Automatically edited
```

---

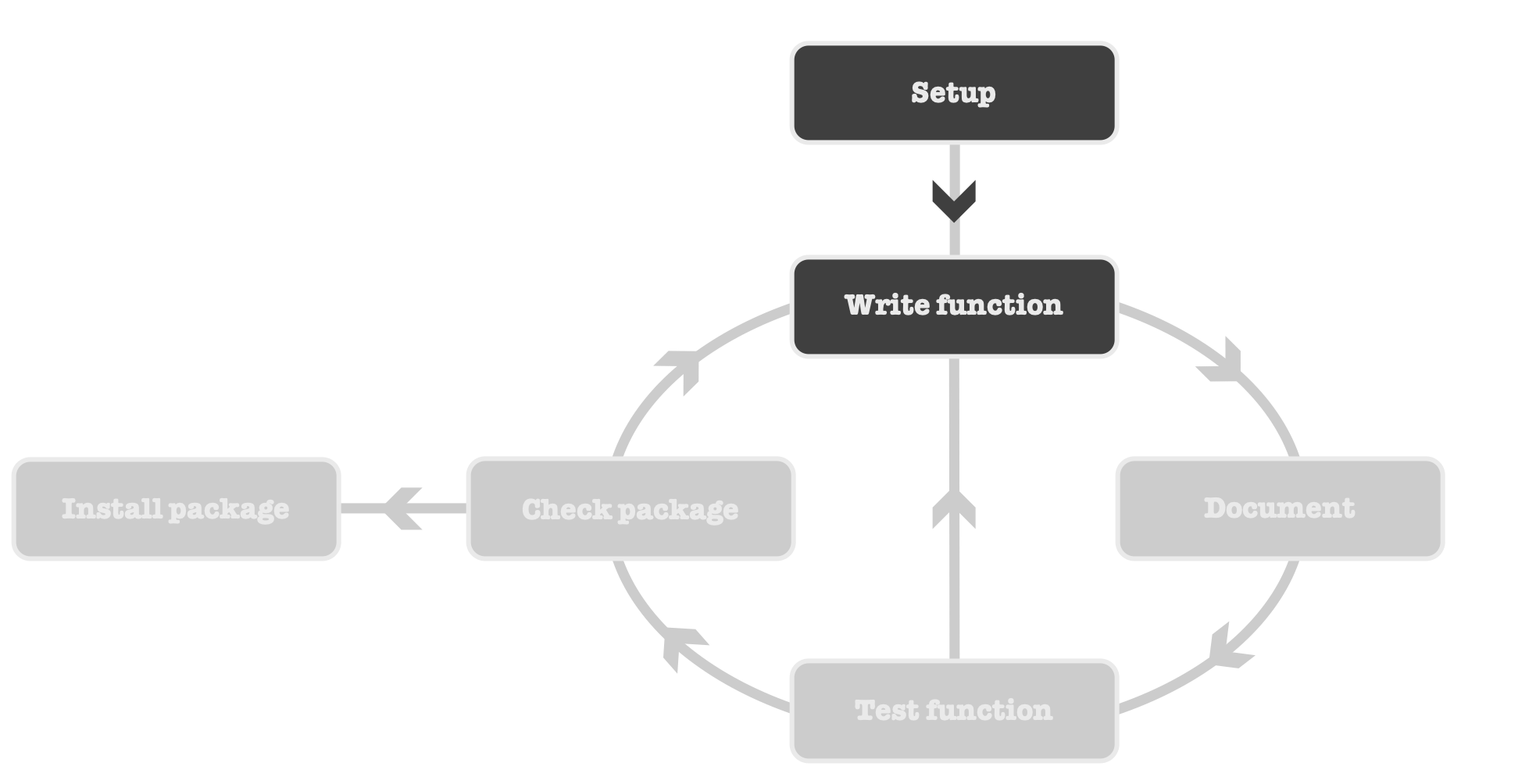

## Writing an R function

![:scale 100.0%](img/pkg-step-2.png)

---

## Writing an R function

&nbsp;
Let's create a first function `moyenne()`.

- First, we will create a new empty file in the folder **R/**.

``` r
usethis::use_r("moyenne")
```

- Now we can implement our function `moyenne()`.

``` r
moyenne <- function(x) sum(x) / length(x)
```

&nbsp;
Resources: [`Tidyverse style guide`](https://style.tidyverse.org/)

---

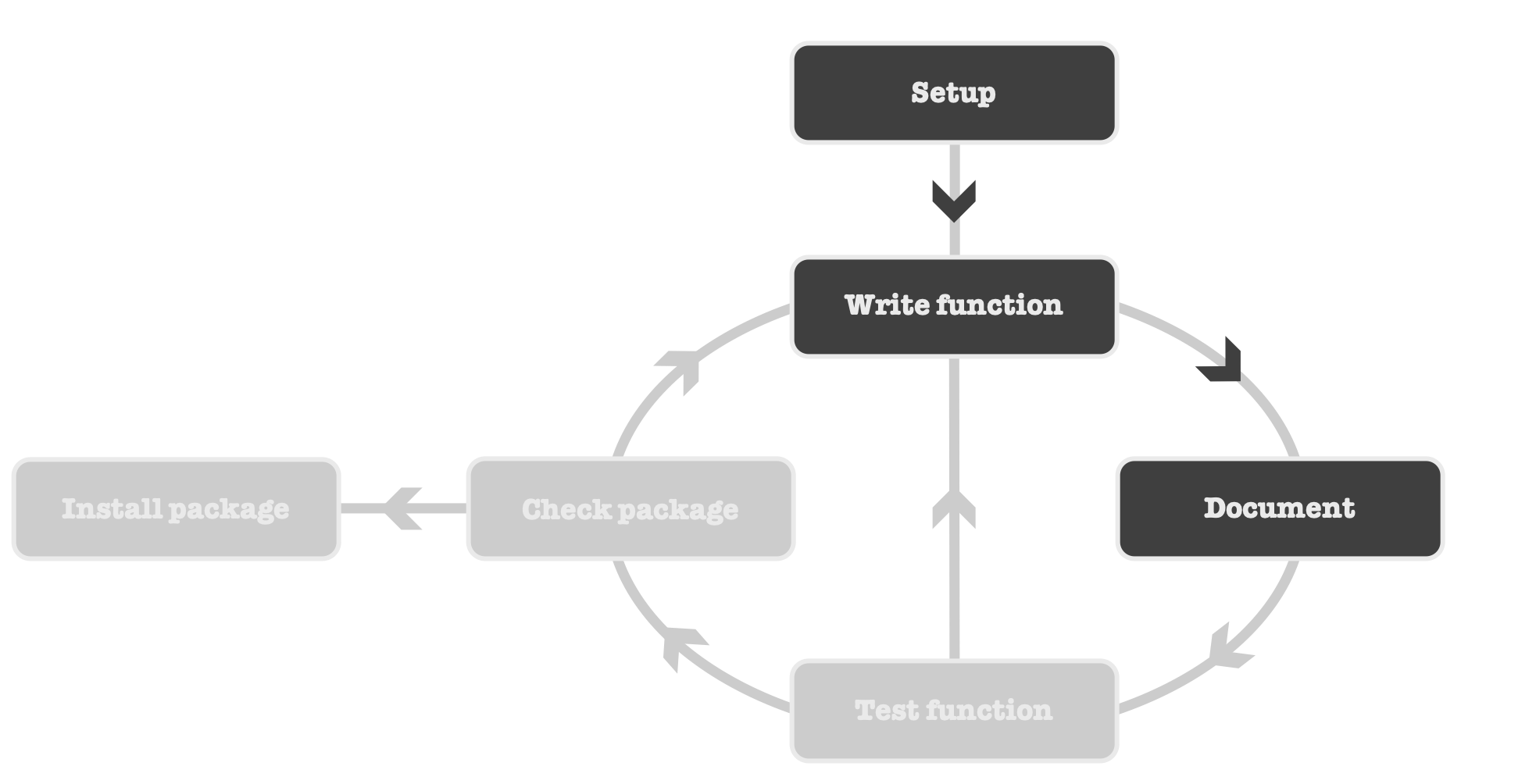

## Time to document

![:scale 100.0%](img/pkg-step-3.png)

---

## Time to document

.pull-leftt[
.center[[![:scale 75%](img/hex-roxygen2.png)](https://cran.r-project.org/web/packages/roxygen2/vignettes/roxygen2.html)]
]

.pull-rightt[
- Specially-structured comments **preceding** each function definition
- Lightweight syntax easy to write and to read
- Syntax: `#' @field value`
- Keep function definition and documentation in the same file
- Automatically write `.Rd` files and **NAMESPACE**
]

Each `roxygen` header will always start with these two fields:

``` r
#' @title Short title of the function (one line)
#'
#' @description A longer description of what the function does (several lines)
```

&nbsp;
Keywords `@title` and `@description` can be omitted.

``` r
#' Short title of the function (one line)
#'
#' A longer description of what the function does (several lines)
```

---

## Time to document

&nbsp;
If your function has `input parameters`, each one must be documented.

``` r
#' @param param_1 description
#' @param param_2 description
```

In our function `moyenne()`:

``` r
#' @param x a numeric vector
```

&nbsp;
If your function `returns` an object,
use the keyword `@return`.

``` r
#' @return What the function returns.
```

In our function `moyenne()`:

``` r
#' @return A `numeric` representing the arithmetic mean of `x`.
```

If your function returns nothing, use the keyword `@return` as follow:

``` r
#' @return No return value.
```

---

## Time to document

&nbsp;
Add a section `@examples` to show how to use your function:

``` r
#' @examples
#' x <- 1:10
#' moyenne(x)
```

&nbsp;
Finally if you want your function to be used directly by user, you need to add this tag.

``` r
#' @export
```

---

## Time to document

Back to the R file of our function.

``` r
#' Compute the arithmetic mean
#'
#' This function computes the arithmetic mean of a numeric variable.
#'
#' @param x a numeric vector
#'
#' @return A `numeric` representing the arithmetic mean of `x`.
#'
#' @export
#'
#' @examples
#' x <- 1:10
#' moyenne(x)

moyenne <- function(x) sum(x) / length(x)
```

---

## Generating the documentation

.pull-lefttt[
 &nbsp;
It's time to generate the corresponding `.Rd` file from this `roxygen` header.

&nbsp;
All `.Rd` files are stored in the `man` folder.

``` r
devtools::document()
```

```
✓ Writing 'man/moyenne.Rd'
✓ Writing 'NAMESPACE'
```
]

.pull-righttt[
.center[[![:scale 75%](img/hex-devtools.png)](https://devtools.r-lib.org/)]
]

&nbsp;
In addition to the creation of `man/moyenne.Rd` file, the `NAMESPACE` has been updated.

&nbsp;
This file lists which functions need to be exported, i.e. directly
usable when loading the package (this file also deals with external dependencies).

``` r
# Generated by roxygen2: do not edit by hand
export(moyenne)
```

---

## Testing the function

![:scale 100.0%](img/pkg-step-4.png)

---

## Testing the function

.pull-lefttt[
 &nbsp;
Before going any further, we have to try our function. So we will load our package
(and **NOT** sourcing the function).

``` r
devtools::load_all()
```
]
.pull-righttt[
.center[[![:scale 75%](img/hex-devtools.png)](https://devtools.r-lib.org/)]
]

Now we can use our function:

``` r
moyenne(c(1, 2))
```

```
## [1] 1.5
```

What about `NA`?

``` r
moyenne(c(1, 2, NA))
```

```
## [1] NA
```

***Hum...***

---

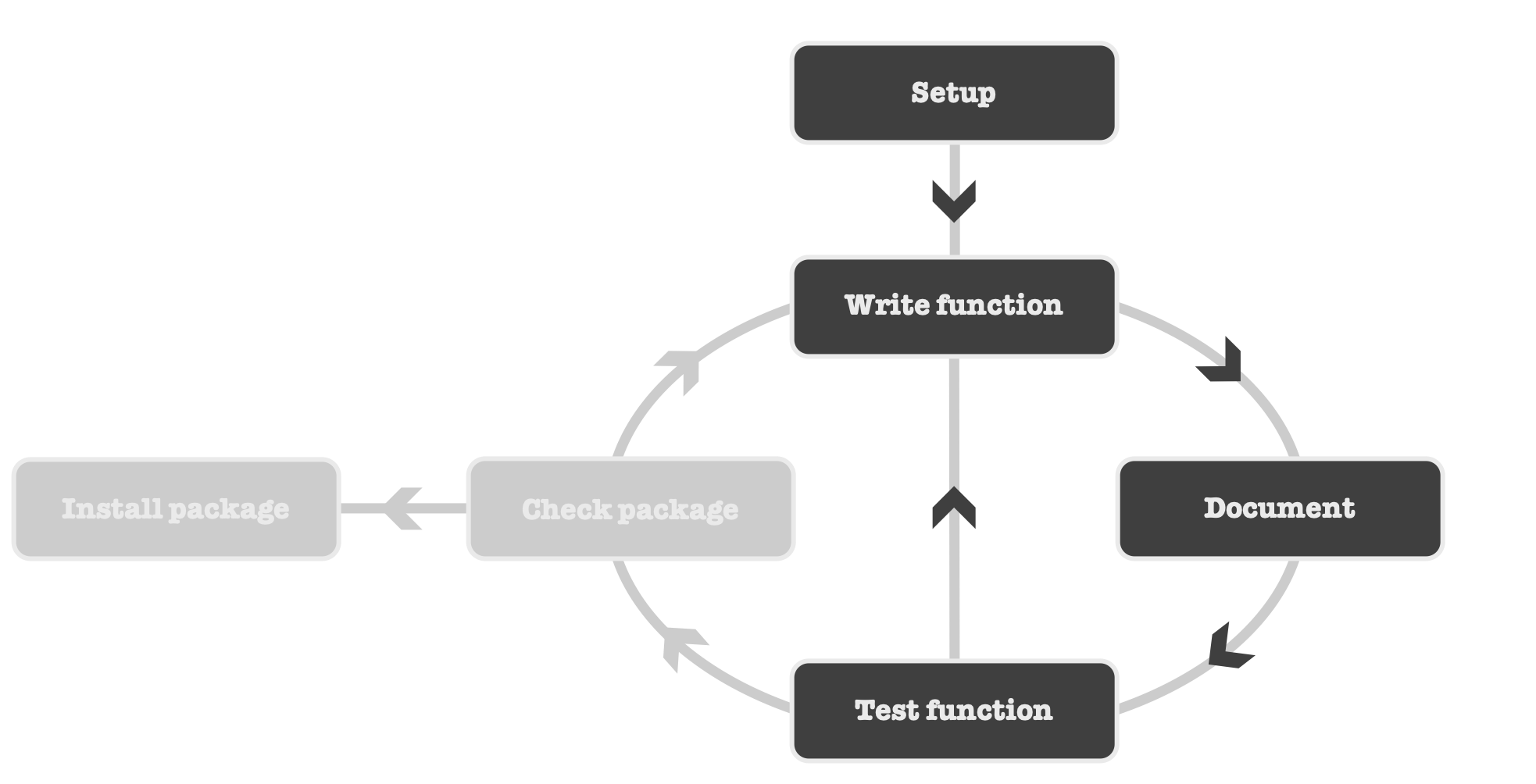

## Modifying the function

![:scale 100.0%](img/pkg-step-5.png)

---

## Modifying the function

Our function does not seem to work properly.

&nbsp;
We need to update the code to deal with `NA` values.

``` r
moyenne <- function(x) {
 x <- na.omit(x)
 sum(x) / length(x)
}
```

Let's test the function again:

``` r
## Reload the function ----
devtools::load_all()

## Testing the function ----
moyenne(c(1, 2))
## [1] 1.5

## Testing the function (with NA) ----
moyenne(c(1, 2, NA))
## [1] 1.5
```

---

## Modifying the function

That's better, but...

If user has `NA` values, this implementation will not inform him/her and will make the
decision to remove `NA`. Instead we are going to let user choose to delete the
`NA` or not.

&nbsp;
Let's add an additional parameter to our function: `na_rm` with a default value
(`FALSE`). If `x` contains `NA` values and `na_rm = FALSE`, then an error will
be returned. If `na_rm = TRUE`, `NA` values will be removed and the
computation can be done.

``` r
moyenne <- function(x, na_rm = FALSE) {
 if (any(is.na(x))) {
 if (na_rm) {
 x <- na.omit(x)
 } else {
 stop("Argument 'x' contains NA values. Use 'na_rm = TRUE' to remove missing values.")
 }
 }
 sum(x) / length(x)
}
```

---

## Modifying the function

Let's test the function again.

``` r
## Reload the function ----
devtools::load_all()

## Testing the function ----
moyenne(x = c(1, 2))
## [1] 1.5

moyenne(x = c(1, 2, NA))
## Error in moyenne(x = c(1, 2, NA)):
## Argument 'x' contains NA values. Use 'na_rm = TRUE' to remove missing values.

moyenne(x = c(1, 2, NA), na_rm = TRUE)
## [1] 1.5
```

---

## Update documentation

![:scale 100.0%](img/pkg-step-3.png)

---

## Update documentation

``` r
#' Compute the arithmetic mean
#'
#' This function computes the arithmetic mean of a numeric variable.
#'
#' @param x a numeric vector (can contain `NA` values).
#'
#' @param na_rm a logical value indicating whether `NA` values should be
#' stripped before the computation proceeds. Default is `FALSE`.
#'
#' @return A `numeric` representing the arithmetic mean of `x`.
#'
#' @details An error will be returned if `x` contains `NA` values and `na_rm`
#' is `FALSE` (default behaviour).
#'
#' @export
#'
#' @examples
#' moyenne(x = c(1, 2))
#'
#' \dontrun{
#' moyenne(x = c(1, 2, NA))               # error
#' }
#'
#' moyenne(x = c(1, 2, NA), na_rm = TRUE)

moyenne <- function(x, na_rm = FALSE) { ... }
```

And update the corresponding `.Rd` file and the `NAMESPACE`.

``` r
devtools::document()
```

---

## And so on...

![:scale 100.0%](img/pkg-step-5.png)

---

## Package metadata

Before we go any further, we need to edit some information about our package,
using the `DESCRIPTION` file:

- what defines our package (name, title, description, version, authors)?
- who can use our package and how (licence)?
- who should be contacted if there is a problem or question (the maintainer has the `cre` role)?

.pull-lefttt[

``` r
usethis::edit_file("DESCRIPTION")
```

```
Package: mypkg
Title: A Minimal but Complete R Package
Version: 0.0.0.9000
Authors@R:
 person(given = "Nicolas",
 family = "Casajus",
 role = c("aut", "cre", "cph"),
 email = "nicolas.casajus@fondationbiodiversite.fr",
 comment = c(ORCID = "0000-0002-5537-5294"))
Description: Illustrates the main structure and components of an R Package with
 respect to the CRAN submission policies <https://cran.r-project.org/>.
License: GPL (>= 2)
Encoding: UTF-8
Roxygen: list(markdown = TRUE)
RoxygenNote: 7.1.2
```
]
.pull-righttt[
.center[[![:scale 75%](img/hex-usethis.png)](https://usethis.r-lib.org/)]
]

&nbsp;
Resources: [`DESCRIPTION file`](https://r-pkgs.org/description.html)
and [`Choose a license`](https://choosealicense.com)

---

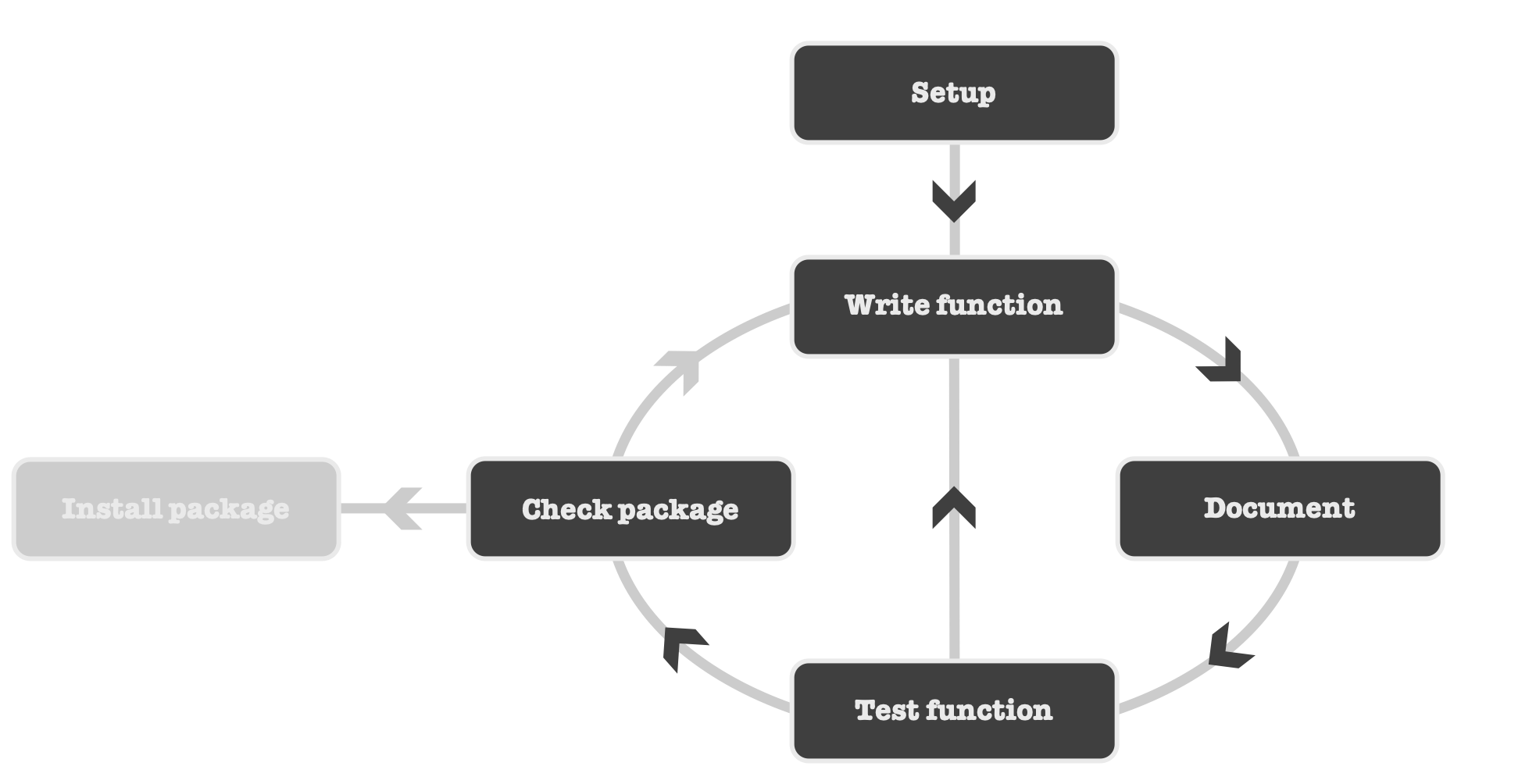

## Check package

![:scale 100.0%](img/pkg-step-6.png)

---

## Check package

.pull-lefttt[

``` r
devtools::check()
```

```
── R CMD check results ─────────────────────────────────── mypkg 0.0.0.9000 ───────
Duration: 11.6s

> checking R code for possible problems ... NOTE
  moyenne: no visible global function definition for ‘na.omit’
  Undefined global functions or variables:
    na.omit
  Consider adding
    importFrom("stats", "na.omit")
  to your NAMESPACE file.

0 errors ✓ | 0 warnings ✓ | 1 note x
```
]
.pull-righttt[




.center[[![:scale 75%](img/hex-devtools.png)](https://devtools.r-lib.org/)]
]

&nbsp;
**1 note**: Let's talk about package dependencies!

---

## Package dependencies

```
> checking R code for possible problems ... NOTE
  moyenne: no visible global function definition for ‘na.omit’
  Undefined global functions or variables:
    na.omit
  Consider adding
    importFrom("stats", "na.omit")
  to your NAMESPACE file.
```

&nbsp;
So we need to import the function `na.omit()` from the package `{stats}`.

In `roxygen` header, import:

- either the whole package, with the tag `@import`:

``` r
#' @import stats
```

- or only specific functions from a package, with the tag `@importFrom`:

``` r
#' @importFrom stats na.omit
```

---

## Package dependencies

&nbsp;
In your R code, call external functions with `::` for clarity and efficiency.

Here `stats::na.omit()`

``` r
moyenne <- function(x, na_rm = FALSE) {
 if (any(is.na(x))) {
 if (na_rm) {
 x <- stats::na.omit(x)
 } else {
 stop("Argument 'x' contains NA values. Use 'na_rm = TRUE' to remove missing values.")
 }
 }
 sum(x) / length(x)
}
```

---

## Package dependencies

&nbsp;
**Do not forget** to update the `NAMESPACE` (and the `.Rd` files) with `devtools::document()`.

```
export(moyenne)
importFrom(stats,na.omit)
```

&nbsp;
The `NAMESPACE` controls what happens when our package is loaded but
not when it's installed. This is the role of the `DESCRIPTION` file and we need to add
dependencies to this file.

---

## Package dependencies

.pull-lefttt[
 &nbsp;
Let's add the dependency `stats` in the `DESCRIPTION` file.

``` r
usethis::use_package("stats", type = "Imports")
```

```
Package: mypkg
Title: A Minimal but Complete R Package
Version: 0.0.0.9000
Authors@R:
 person(given = "Nicolas",
 family = "Casajus",
 role = c("aut", "cre", "cph"),
 email = "nicolas.casajus@fondationbiodiversite.fr",
 comment = c(ORCID = "0000-0002-5537-5294"))
Description: Illustrates the main structure and components of an R Package with
 respect to the CRAN submission policies <https://cran.r-project.org/>.
License: GPL (>= 2)
Encoding: UTF-8
Roxygen: list(markdown = TRUE)
RoxygenNote: 7.1.2
Imports:
 stats
```
]
.pull-righttt[
.center[[![:scale 75%](img/hex-usethis.png)](https://usethis.r-lib.org/)]
]

---

## Dependencies types

- `Depends`: packages listed in this field are `installed` when your package is
installed and are `attached` when your package is attached.
**NEVER** use `Depends` and always use `Imports` (except for special cases).

- `Imports`: packages listed in this field are `installed` when your package is
installed but are `not attached` when your package is attached (there are just loaded).
**ALWAYS** use this method.

- `Suggests`: packages listed in this field are `not installed` when your
package is installed. Your package can use these packages, but doesn't require
them (e.g. to run tests, build vignettes, etc.).

&nbsp;
Resources: Wickham & Bryan - R Packages
[**Chap 9**](https://r-pkgs.org/description.html),
[**Chap 10**](https://r-pkgs.org/dependencies-mindset-background.html) and
[**Chap 11**](https://r-pkgs.org/dependencies-in-practice.html)

---

## Check package

![:scale 100.0%](img/pkg-step-6.png)

---

## Check package

``` r
devtools::check()
```

```
── R CMD check results ─────────────────────────────────── mypkg 0.0.0.9000 ───────
Duration: 11.6s

0 errors ✓ | 0 warnings ✓ | 0 notes ✓
```

---

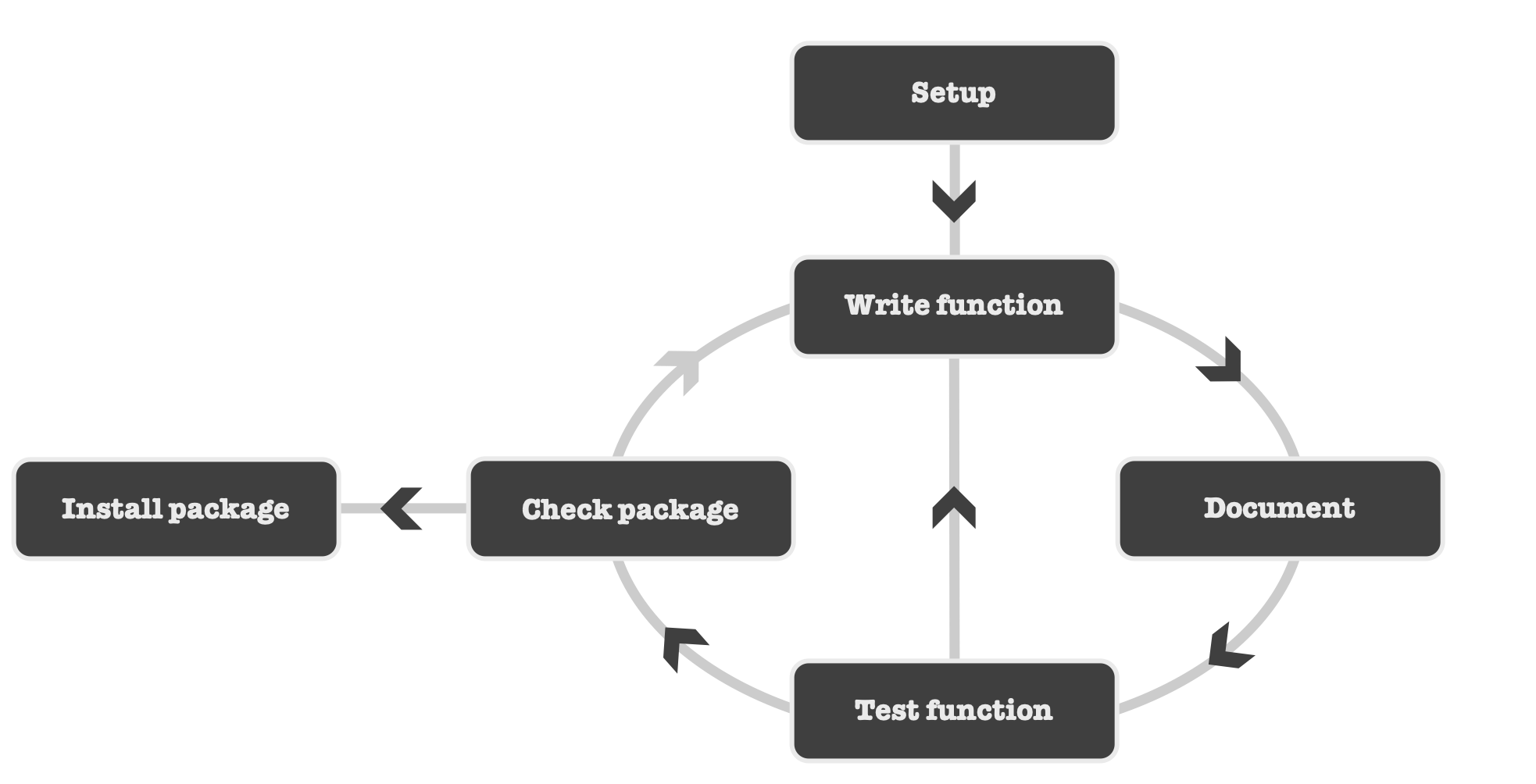

## Install package

![:scale 100.0%](img/pkg-step-7.png)

---

## Install package

.pull-lefttt[

``` r
## Install package ----
devtools::install()
```
]
.pull-righttt[
.center[[![:scale 75%](img/hex-devtools.png)](https://devtools.r-lib.org/)]
]

&nbsp;
Now we can use our package.

``` r
## Load and attach the package ----
library("mypkg")

## Use the package ----
moyenne(c(1, 2))
```

``` r
## Use the package (without attaching it) ----
mypkg::moyenne(c(1, 2))
```

---

class: inverse, center, middle

## To go further...

---

## Advanced tests

- Testing is a vital part of package development
- But until now we just tried our code informally and on the fly
- Problem: it's time consuming, repetitive and it can break the code

&nbsp;
Package `{testthat}`

.pull-leftt[
.center[[![:scale 75%](img/hex-testthat.png)](https://testthat.r-lib.org)]
]

.pull-rightt[
- Implements a lot of unit tests
- Formal automated testing
- Explicits how your code should behave
- Makes your code more robust
]

``` r
usethis::use_testthat()
```

&nbsp;
Resources:
[**R Packages Chap 13**](https://r-pkgs.org/testing-basics.html)

---

## Add a vignette

.pull-leftt[
.center[[![:scale 75%](img/hex-rmarkdown.png)](https://rmarkdown.rstudio.com/)]
]

.pull-rightt[
- A tutorial for your package
- Shows how to use your package
- Uses the syntax `Rmarkdown`
]

``` r
usethis::use_vignette("mypkg")
```

&nbsp;
Resources:
[**R Package Chap 17**](https://r-pkgs.org/vignettes.html)

---

## And...

- Deploy on **GitHub** - `usethis::use_github()`
- Add a **README** (and badges) - `usethis::use_readme_rmd()`
- Add a **NEWS** file - `usethis::use_news_md()`
- Add a **Website** with `pkgdown`
- Add a **Logo** with `hexSticker`
- CI/CD with **GitHub Actions** - `usethis::use_github_action_*()`
- Check your package with `rhub`
- ~~Add a **DOI** with HAL or Zenodo~~ CRAN yields a DOI for your package
- Archive your package on [Software Heritage](https://www.softwareheritage.org/?lang=fr)

- Submit to CRAN
 - `R CMD check pkg --as-cran`
 - on the current version of R-devel
 - on at least two OS
 - blank report: `0 errors | 0 warnings | 0 notes`

The ultimate resources: [**https://r-pkgs.org**](https://r-pkgs.org) and [**Writing R Extensions**](https://cran.r-project.org/doc/manuals/r-release/R-exts.html)
