Docker for R users

A gentle introduction to containerization

December 2024

Nicolas Casajus

Senior data scientist
@FRB-CESAB

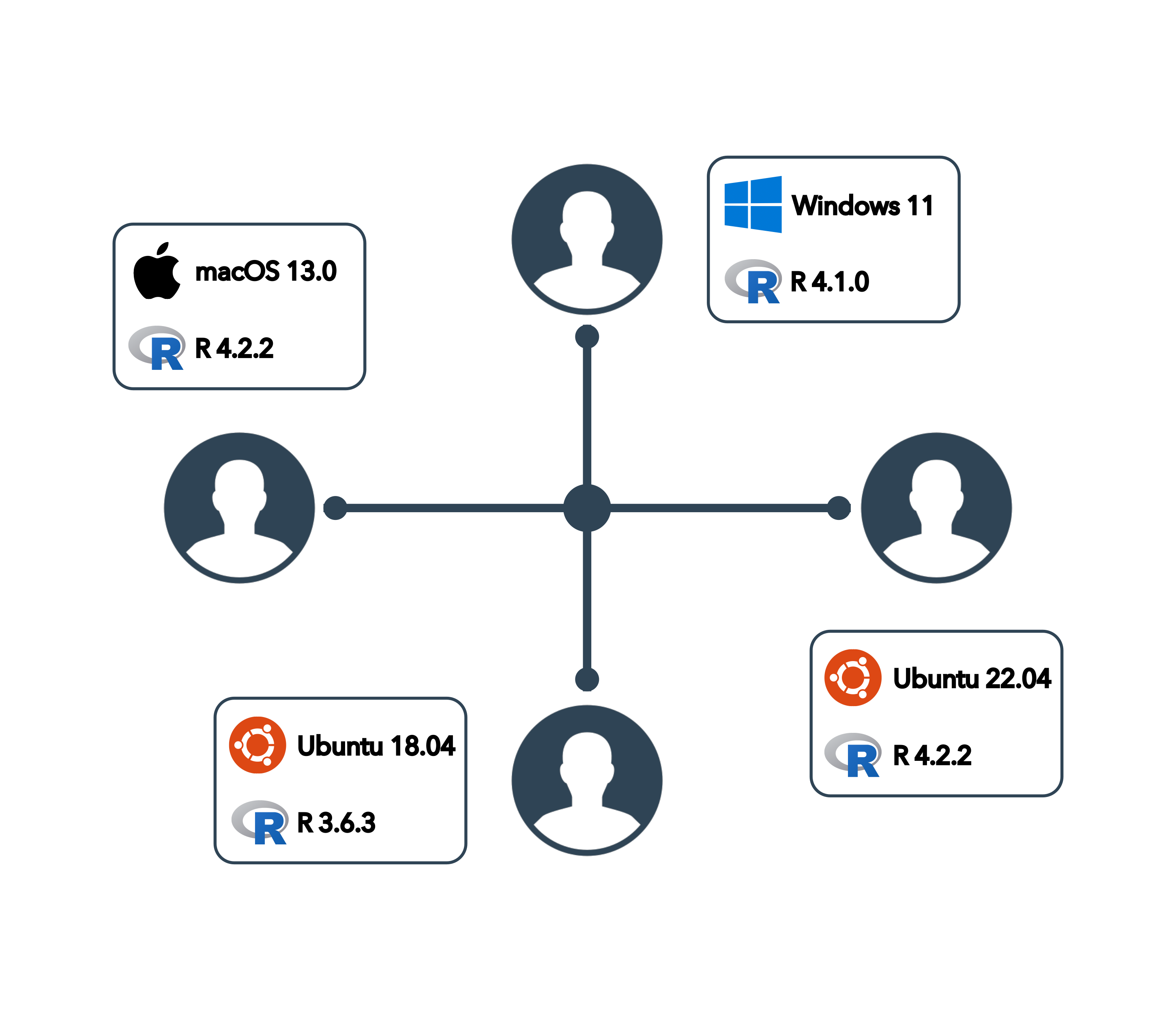

Context

  • Research compendium for file organization
  • Writing functions for code optimization
  • Quarto | RMarkdown for literate programming
  • git for version control
  • GitHub for sharing & collaboration
  • renv to freeze packages (and their versions)

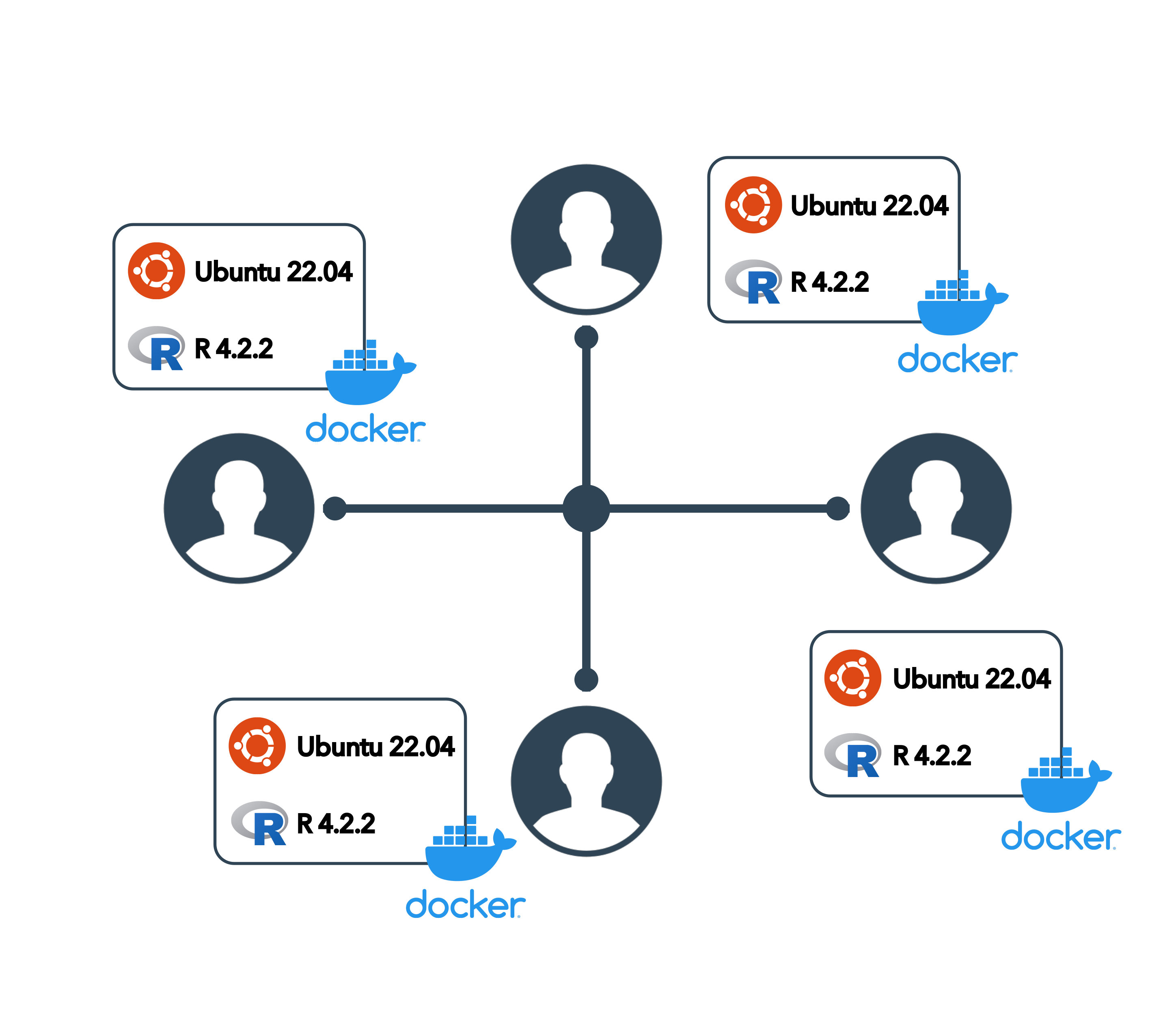

 What about the computational environment?

  • Software and system libraries
  • Operating system

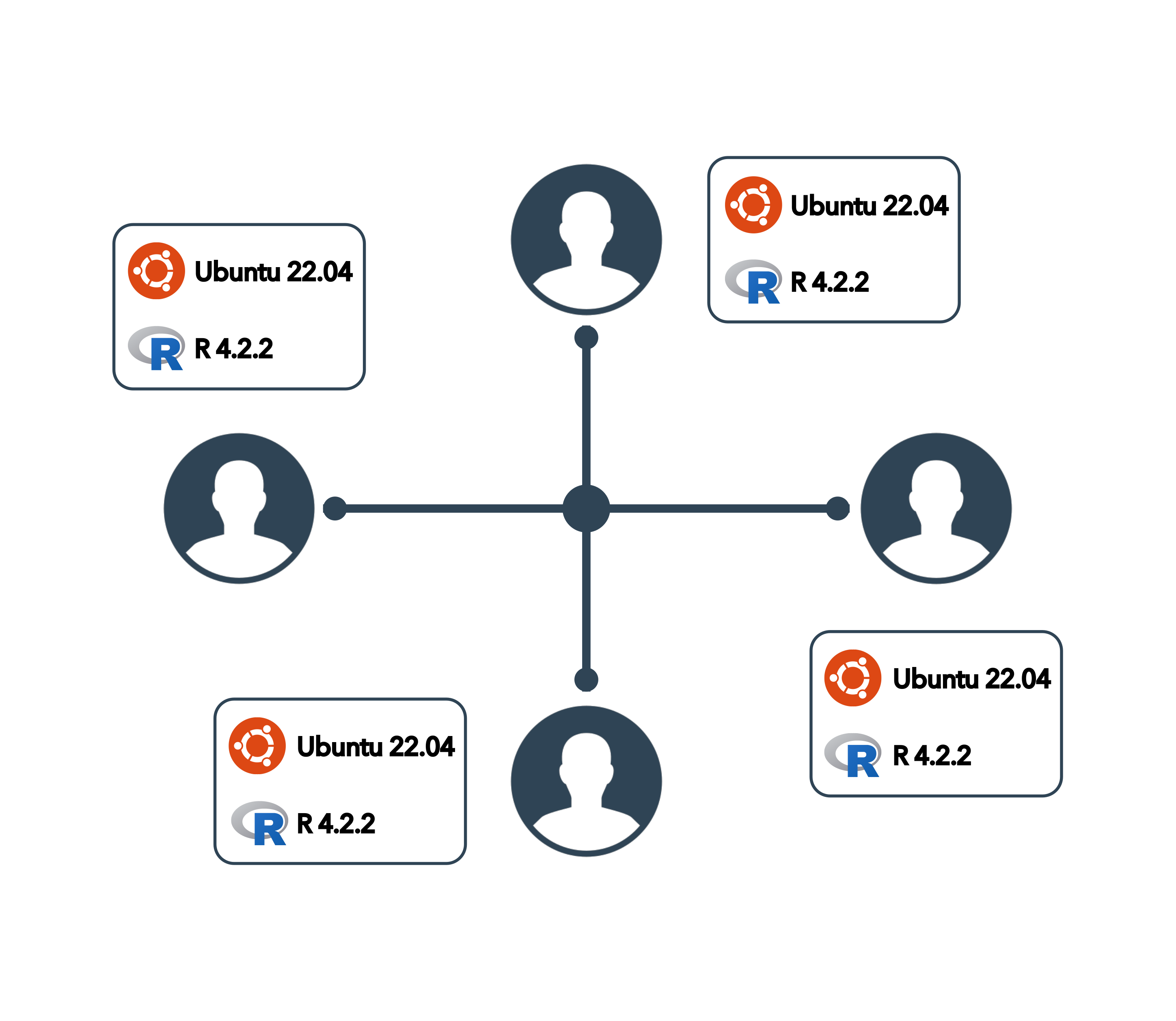

Context

Context

Context

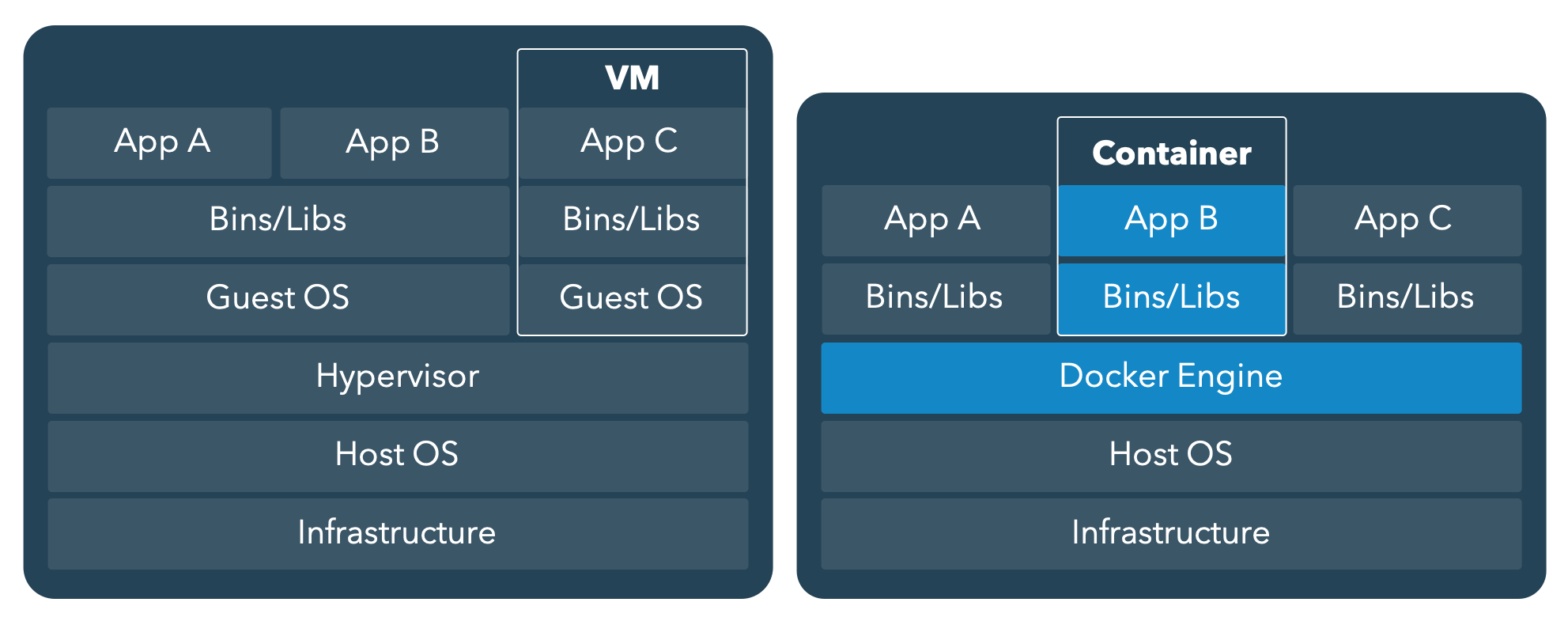

Introducing Docker

  • Free and open-source software
  • Containerization technology
  • Platform for developing, shipping, and running applications
  • Docker containers are lightweight, portable and isolated from the underlying infrastructure and other containers

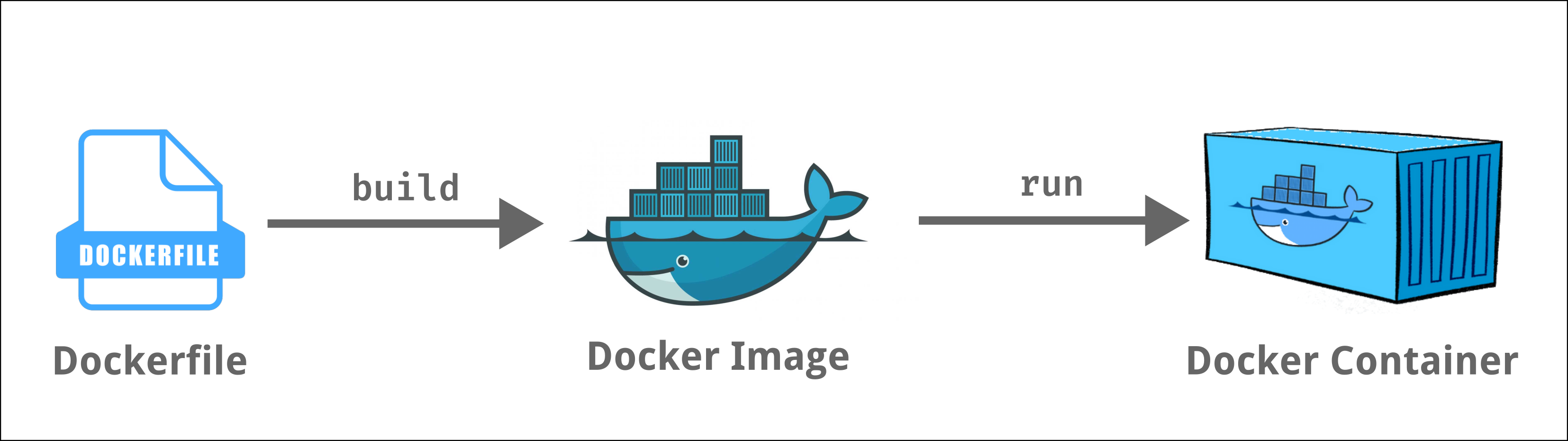

Concepts


Dockerfile
the blueprint

  • A plain text file
  • A set of instructions to create a custom image
  • Can be shipped w/ the compendium

Concepts


Dockerfile
the blueprint

  • A plain text file
  • A set of instructions to create a custom image
  • Can be shipped w/ the compendium

Docker Image
the template

  • Built from a Dockerfile
  • A read-only (immutable) template used to create containers
  • Can be shared on Docker Hub

Concepts


Dockerfile
the blueprint

  • A plain text file
  • A set of instructions to create a custom image
  • Can be shipped w/ the compendium

Docker Image
the template

  • Built from a Dockerfile
  • A read-only (immutable) template used to create containers
  • Can be shared on Docker Hub

Docker Container
the executive instance

  • Generated from a Docker image
  • Contains the entire package needed to run the application
  • User interacts only w/ containers


  A Docker image is immutable and will always create the same container

Where can I find Docker images?

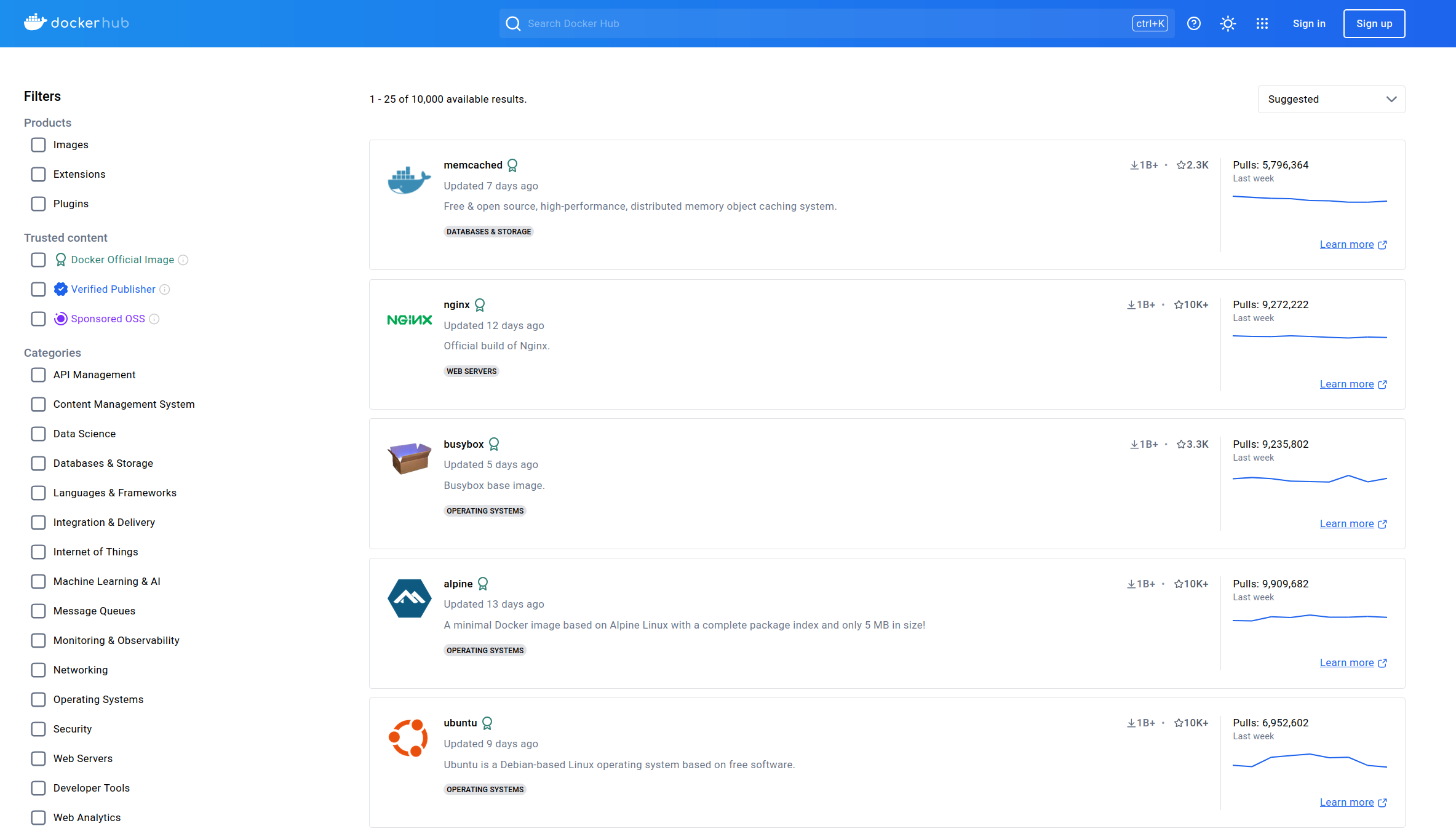

  Docker Hub: the Official Docker registry

Where can I find Docker images for ?

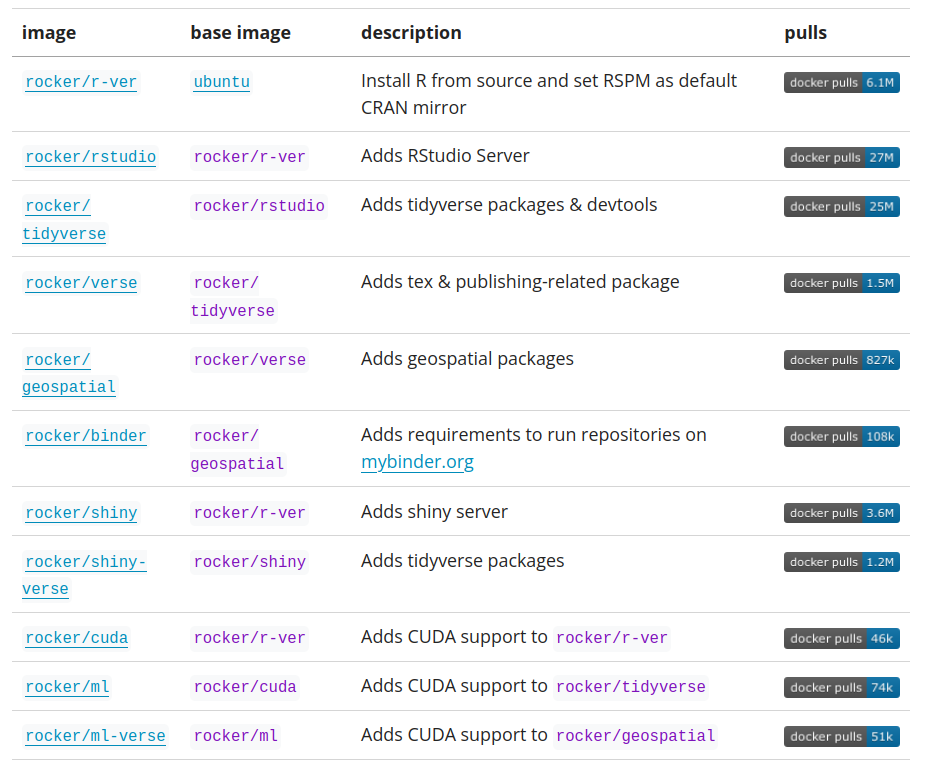

  The Rocker project

Download a Docker image


## Download latest version of R ----
docker pull rocker/r-ver

  docker pull will download a Docker image from Docker Hub

Download a Docker image


## Download latest version of R ----
docker pull rocker/r-ver

  docker pull will download a Docker image from Docker Hub

## List Docker images available locally ----
docker images

## REPOSITORY     TAG       IMAGE ID       CREATED         SIZE
## rocker/r-ver   latest    c2909963ee34   12 days ago     938MB

Download a Docker image


## Download latest version of R ----
docker pull rocker/r-ver

  docker pull will download a Docker image from Docker Hub

## List Docker images available locally ----
docker images

## REPOSITORY     TAG       IMAGE ID       CREATED         SIZE
## rocker/r-ver   latest    c2909963ee34   12 days ago     938MB


## Download a specific version of R ----
docker pull rocker/r-ver:4.4.2

  For a better reproducibility, specify the tag (version) of the image

## List Docker images available locally ----
docker images

## REPOSITORY     TAG       IMAGE ID       CREATED         SIZE
## rocker/r-ver   latest    c2909963ee34   12 days ago     938MB
## rocker/r-ver   4.4.2     c2909963ee34   12 days ago     938MB

Download a Docker image


## Download latest version of R ----
docker pull rocker/r-ver

  docker pull will download a Docker image from Docker Hub

## List Docker images available locally ----
docker images

## REPOSITORY     TAG       IMAGE ID       CREATED         SIZE
## rocker/r-ver   latest    c2909963ee34   12 days ago     938MB


## Download a specific version of R ----
docker pull rocker/r-ver:4.4.2

  For a better reproducibility, specify the tag (version) of the image

## List Docker images available locally ----
docker images

## REPOSITORY     TAG       IMAGE ID       CREATED         SIZE
## rocker/r-ver   latest    c2909963ee34   12 days ago     938MB
## rocker/r-ver   4.4.2     c2909963ee34   12 days ago     938MB


## Download a specific version of R ----
docker pull rocker/r-ver:4.0.1

  With Docker it’s easy to install different versions of the same software

## List Docker images available locally ----
docker images

## REPOSITORY     TAG       IMAGE ID       CREATED         SIZE
## rocker/r-ver   latest    c2909963ee34   12 days ago     938MB
## rocker/r-ver   4.4.2     c2909963ee34   12 days ago     938MB
## rocker/r-ver   4.0.1     3c5754bb465f   20 months ago   854MB

Run a Docker container

  Example with the Docker image rocker/r-ver


## Run a container from an image  ----
docker run -it rocker/r-ver:4.4.2

  The flag -it allows you to interact w/ the container

By default, the rocker/r-ver image provides direct access to

R version 4.4.2 (2024-10-31) -- "Pile of Leaves"
Copyright (C) 2024 The R Foundation for Statistical Computing
Platform: x86_64-pc-linux-gnu

>


We are using inside a Docker container and we can work as usual.


## Create a file from R inside a container  ----
file.create("README.md")

## Install a package ----
install.packages("devtools")

  Type q() to quit and stop the container.


  Important

  • Data created inside a Docker container do not persist: the README.md file and the devtools package will be lost when closing the container.
  • Docker containers are isolated: containers don’t have access to user files (Guest OS)

Run a Docker container

  Example with the Docker image rocker/r-ver


## Run a container from an image  ----
docker run -it rocker/r-ver:4.4.2 bash

  Instead we can access to a Linux Shell by adding bash and open later from the container by calling R

root@c038f516feb1:/#

Run a Docker container

  Example with the Docker image rocker/r-ver


## Run a container from an image  ----
docker run -it rocker/r-ver:4.4.2 bash

  Instead we can access to a Linux Shell by adding bash and open later from the container by calling R

root@c038f516feb1:/#

root@c038f516feb1:/# cat /etc/issue
## Ubuntu 24.04.1 LTS


We are using bash inside a Docker container and we can work as usual.


## Update system  ----
apt update && apt upgrade -y

## Install a software ----
apt install figlet

## Use new tool ----
figlet 'Inside Docker'
 ___           _     _        ____             _
|_ _|_ __  ___(_) __| | ___  |  _ \  ___   ___| | _____ _ __
 | || '_ \/ __| |/ _` |/ _ \ | | | |/ _ \ / __| |/ / _ \ '__|
 | || | | \__ \ | (_| |  __/ | |_| | (_) | (__|   <  __/ |
|___|_| |_|___/_|\__,_|\___| |____/ \___/ \___|_|\_\___|_|


  Type exit to quit bash and stop the container

Container monitoring

  Use docker ps to check the status of your containers


## Monitor Docker containers  ----
docker ps -a

  Add the flag -a to list stopped containers too


CONTAINER ID   IMAGE                COMMAND   CREATED          STATUS                      PORTS     NAMES
f466117bb7f3   rocker/r-ver:4.0.1   "R"       9 seconds ago    Up 8 seconds                          beautiful_poitras
cb1f8498bc55   rocker/r-ver:4.4.2   "bash"    21 seconds ago   Exited (0) 17 seconds ago             zealous_borg


  You can add the flag --rm to docker run to automatically destroy the container when it’s stopped.


## Start a new Docker container ----
docker run --rm -it rocker/r-ver:4.4.2

Container management

Some useful commands to manage your containers


## Restart a Docker container  ----
docker start cb1f8498bc55

  Use docker start to restart a stopped container


## Re-enter inside a Docker container  ----
docker exec -it cb1f8498bc55 bash

  Use docker exec -it to re-enter inside a container


## Stop a Docker container  ----
docker stop cb1f8498bc55

  Use docker stop to stop a container


## Destroy a Docker container  ----
docker rm cb1f8498bc55

  Use docker rm to destroy a container

Volume mapping

  • Links a Docker container to a persistent storage location on the host system
  • Allows data to persist even after the container is stopped or removed
  • Enables data sharing between containers and the host system


Any file created in the host volume (directory) will be accessible by the container through the linked volume.
And vice versa.


## Create a volume mapping  ----
docker run -it -v host_directory:container_directory rocker/r-ver:4.4.2

  Use the flag -v to map a volume

RStudio image

  Another example: the Docker image rocker/rstudio

Contains RStudio Server and enables you to run the RStudio from your web browser


## Download RStudio server image  ----
docker pull rocker/rstudio:4.4.2

## Start RStudio server container ----
docker run --rm -p 8787:8787 rocker/rstudio:4.4.2

  The flag -p specifies the port mapping (access a container through a web browser)

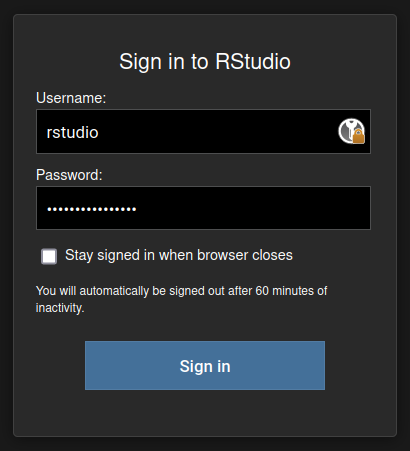

  On a web browser visit http://localhost:8787

  • Username is rstudio
  • Password is displayed in the terminal

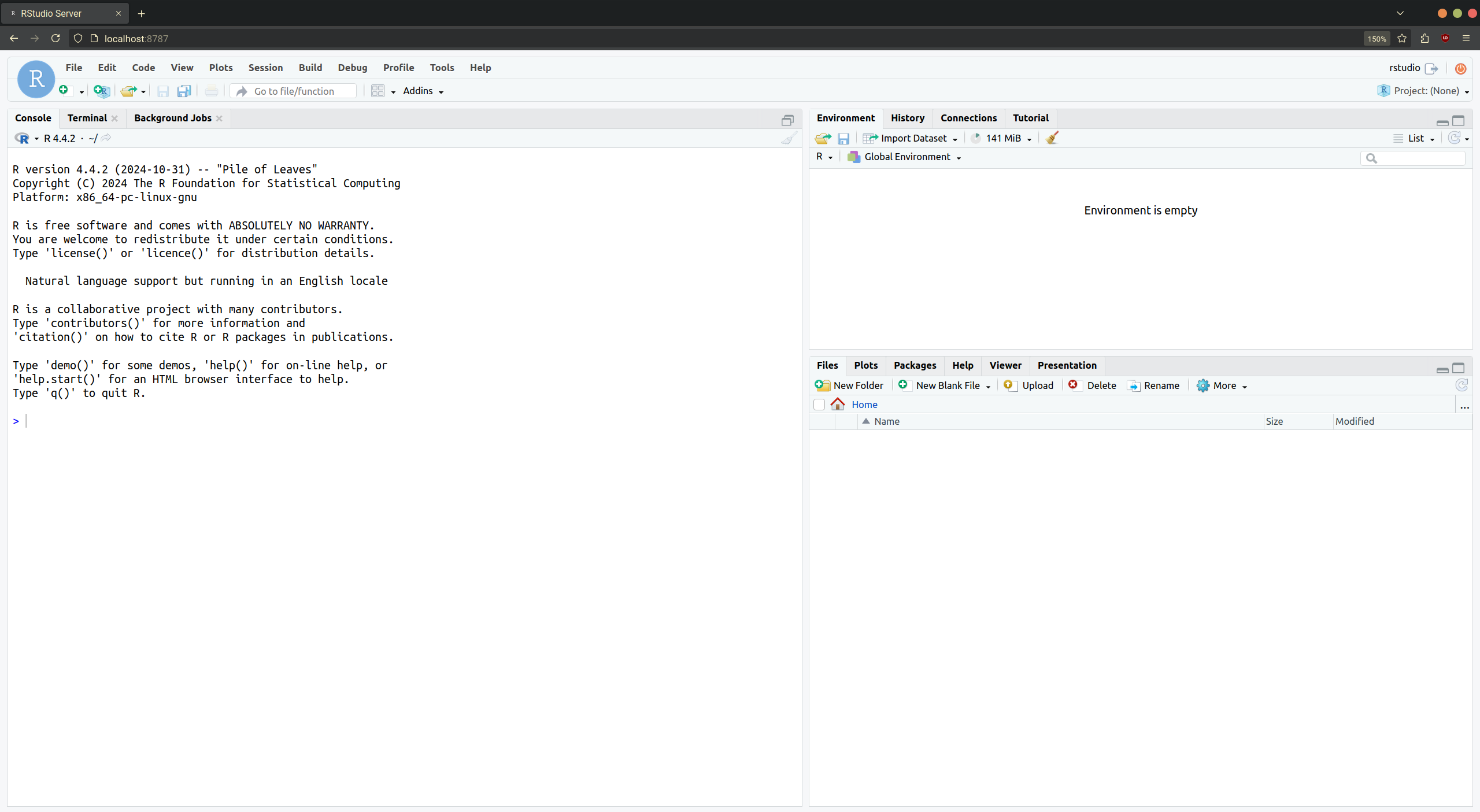

RStudio image

  Press CTRL + C in the terminal to stop the container

Dockerfile


A Dockerfile is a blueprint (recipe) defining how to create a Docker image

  • A plain text file
  • A set of instructions to create a custom image
  • Always based on another Docker image
  • The Dockerfile will be shipped w/ the research compendium


  Just add a file named Dockerfile at the root of your compendium

Dockerfile

  The instruction FROM tells Docker what base image to start from


## Base image ----
FROM rocker/rstudio:4.4.2

Dockerfile

  The instruction WORKDIR sets the working directory inside the container


## Base image ----
FROM rocker/rstudio:4.4.2

## Working directory ----
WORKDIR /home/rstudio

  Use the default directory ‘/home/rstudio’ from the base image

Dockerfile

  The instruction COPY copies files from your computer inside the image


## Base image ----
FROM rocker/rstudio:4.4.2

## Working directory ----
WORKDIR /home/rstudio

## Copy files ----
COPY . /home/rstudio

  Copy all files (.) in the host current directory

Dockerfile

  The instruction RUN executes shell commands inside the container (software installation, configuration, etc.)


## Base image ----
FROM rocker/rstudio:4.4.2

## Working directory ----
WORKDIR /home/rstudio

## Copy files ----
COPY . /home/rstudio

## Change working directory owner ----
RUN chown -R rstudio:rstudio /home/rstudio

  The base image creates the non root user rstudio

Dockerfile

  The instruction RUN executes shell commands inside the container (software installation, configuration, etc.)


## Base image ----
FROM rocker/rstudio:4.4.2

## Working directory ----
WORKDIR /home/rstudio

## Copy files ----
COPY . /home/rstudio

## Change working directory owner ----
RUN chown -R rstudio:rstudio /home/rstudio

## Install R packages ----
RUN R -e "install.packages('ggplot2', repos = c(CRAN = 'https://cloud.r-project.org'))"

  Install packages on the fly

Dockerfile

  The instruction RUN executes shell commands inside the container (software installation, configuration, etc.)


## Base image ----
FROM rocker/rstudio:4.4.2

## Working directory ----
WORKDIR /home/rstudio

## Copy files ----
COPY . /home/rstudio

## Change working directory owner ----
RUN chown -R rstudio:rstudio /home/rstudio

## Install R packages ----
RUN R -e "install.packages('devtools', repos = c(CRAN = 'https://cloud.r-project.org'))"
RUN R -e "devtools::install_deps()"

  Install packages listed in the DESCRIPTION file

Dockerfile

  The instruction RUN executes shell commands inside the container (software installation, configuration, etc.)


## Base image ----
FROM rocker/rstudio:4.4.2

## Working directory ----
WORKDIR /home/rstudio

## Copy files ----
COPY . /home/rstudio

## Change working directory owner ----
RUN chown -R rstudio:rstudio /home/rstudio

## Install R packages ----
RUN R -e "install.packages('devtools', repos = c(CRAN = 'https://cloud.r-project.org'))" \
 && R -e "devtools::install_deps()"

  Merge RUN instructions to lighten the image

Dockerfile

  The instruction RUN executes shell commands inside the container (software installation, configuration, etc.)


## Base image ----
FROM rocker/rstudio:4.4.2

## Working directory ----
WORKDIR /home/rstudio

## Copy files ----
COPY . /home/rstudio

## Change working directory owner ----
RUN chown -R rstudio:rstudio /home/rstudio

## Install R packages ----
RUN R -e "install.packages('renv', repos = c(CRAN = 'https://cloud.r-project.org'))" \
 && R -e "renv::restore()"

  Install packages with renv

Dockerfile

  The instruction RUN executes shell commands inside the container (software installation, configuration, etc.)


## Base image ----
FROM rocker/rstudio:4.4.2

## Working directory ----
WORKDIR /home/rstudio

## Copy files ----
COPY . /home/rstudio

## Change working directory owner ----
RUN chown -R rstudio:rstudio /home/rstudio

## Install R packages ----
ENV RENV_VERSION 1.0.11
RUN R -e "install.packages('remotes', repos = c(CRAN = 'https://cloud.r-project.org'))" \
 && R -e "remotes::install_github('rstudio/renv@${RENV_VERSION}')" \
 && R -e "renv::restore()"

  Install packages with a frozen version of renv


  With this, renv will download and install the requisite packages as appropriate when the image is created. Any new containers created from this image will hence have those packages installed at run-time.

The .dockerignore

Like git it’s possible to tell Docker to ignore files when build images (instruction COPY).


  Create a new file named .dockerignore at the root of the project


# Large files ----
.git
renv/library
renv/local

# History files ----
.Rhistory
.Rapp.history

# Session data files ----
.RData
.Ruserdata

Build an image

  To build a Docker image from a Dockerfile use the command docker build


## Build an image ----
docker build -t "image_name" .

  The argument ‘.’ means that a Dockerfile exists in the current directory


## List Docker images available locally ----
docker images

## REPOSITORY     TAG       IMAGE ID       CREATED         SIZE
## rocker/r-ver   latest    c2909963ee34   12 days ago     938MB
## rocker/r-ver   4.4.2     c2909963ee34   12 days ago     938MB
## rocker/r-ver   4.0.1     3c5754bb465f   20 months ago   854MB
## image_name     latest    999z9z99zzz9   1 minute ago    999MB


## Start new container ----
docker run --rm -p 8787:8787 -e DISABLE_AUTH=true image_name

  Visit http://localhost:8787/ on a web browser

Docker cheatsheet

## Images ----

docker build -t "{{ IMAGE }}" .                        # Build an image from a Dockerfile
docker search {{ IMAGE }}                              # Search for an image on Docker Hub
docker pull {{ IMAGE }}                                # Download a Docker image
docker pull {{ IMAGE }}:{{ TAG }}                      # ... with a specific version
docker images                                          # List local images
docker rmi {{ IMAGE }}:{{ TAG }}                       # Delete a local image


## Container creation ----

docker run -d {{ IMAGE }}:{{ TAG }}                    # Start a new container (in the background)
docker run -it {{ IMAGE }}:{{ TAG }}                   # Start a new container (interactive mode)
docker run -it --name "{{ CONTAINER }}" {{ IMAGE }}    # Set a custom name
docker run --rm -it {{ IMAGE }}:{{ TAG }}              # Delete container after stopped
docker run -it -v {{ DIR }}:{{ DIR }} {{ IMAGE }}      # Volume mapping
docker run -it -p {{ PORT }}:{{ PORT }} {{ IMAGE }}    # Port mapping


## Container monitoring ----

docker ps                                              # List containers
docker ps -a                                           # List containers (stopped included)
docker stats                                           # Containers statistics


## Container management ----

docker start {{ CONTAINER }}                           # Re(start) a container
docker exec -it {{ CONTAINER }}                        # Re-enter in a container
docker stop {{ CONTAINER }}                            # Stop a container
docker rm {{ CONTAINER }}                              # Delete a container

Thanks!
